Windows Kernel Pool Internals
Good morning! In today’s blog post we’re going to dive into a topic that has interested me for quite some time, the Windows kernel pool. It’s a topic that tends to have “scarce” documentation online and can be somewhat intricate. That’s precisely why it has captured my attention from the beginning.
In this post we’ll explore its internals and see how it works behind the scenes, aiming to gain a deeper understanding of this core component of the Windows OS.
Kernel Pool Internals
Basics
To begin with, the Windows Kernel Pool is a range of memory within the kernel’s address space used for dynamic memory allocations by drivers or the kernel itself, in other words, it’s the kernel-mode equivalent of the user-mode heap.
When the system initializes, the memory manager creates two memory pools:
- Non-paged pool - ranges of (kernel) virtual addresses that always reside in RAM and can be accessed without triggering any paging errors such as page faults. This is very important because this memory can be accessed at any IRQL, and at IRQLs DPC/dispatch or higher, only non-paged pool memory must be accessed.
- Paged Pool - a region of the system’s virtual memory that can be paged out without any issues. Drivers that do not need to access memory from IRQL levels at or above DPC/dispatch can safely use this pool.

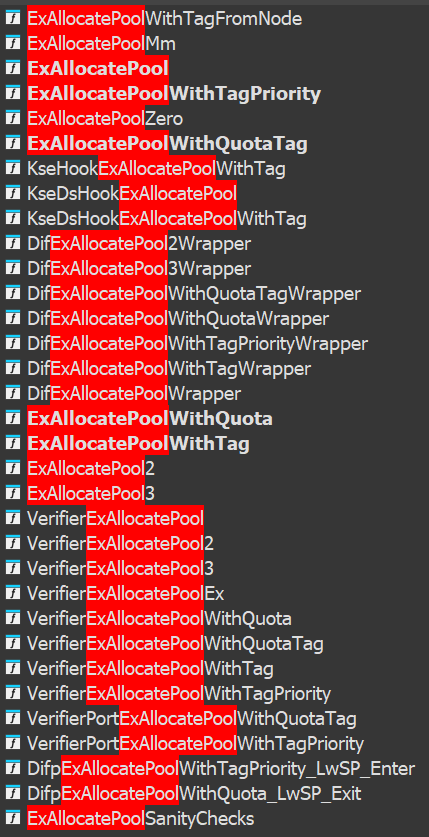

Here are some pool-related functions found in ntoskrnl.exe (24H2).
The number of paged pools can be found at nt!ExpNumberOfPagedPools.
- On single-processor systems, the
nt!ExpPagedPoolDescriptorarray contains 4 paged pool descriptors. - On multiprocessor systems, a paged pool descriptor is defined per node (
_KNODE).
What’s a _KNODE, you ask? Well, to truly learn it (not just memorize it) we first need to understand what a node is. But to understand what a node is, we need to introduce the concept of NUMA architecture (Non-Uniform Memory Access).
NUMA is an architecture used to optimize how memory is allocated in multiprocessor systems. Within this architecture, a node represents:
- A group of CPUs that share a portion of physical memory, this memory is the fastest and closest for that particular group.
- The RAM directly associated with the node.

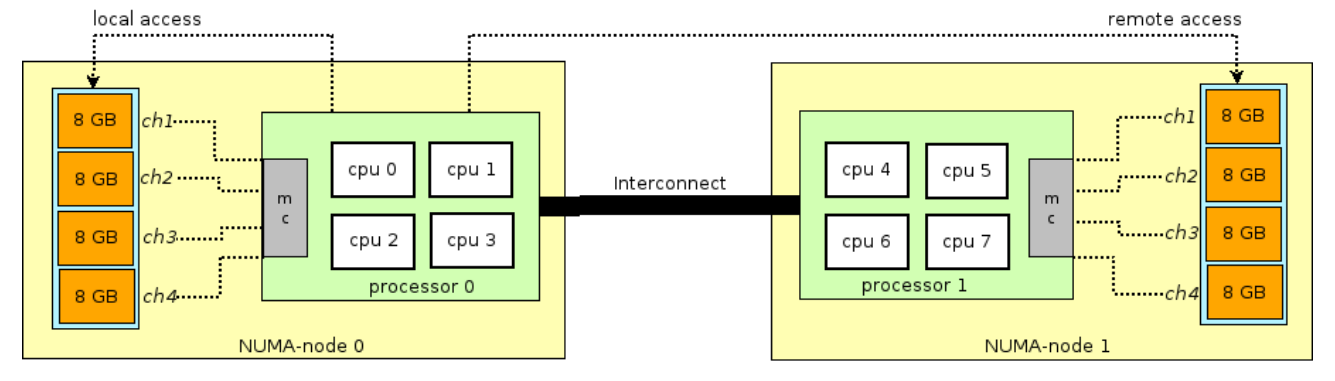

This image from John’s post Multithreading and the Memory Subsystem helps visualize how this architecture works.
That said, what is a _KNODE?
A _KNODE is the internal Windows structure that represents a NUMA node within the kernel. It contains data about the processors assigned to the node, memory allocation lists, pointers to memory pools, etc…
You can find them in nt!KeNodeBlock[], an array of pointers to all _KNODE structures in the system.
Windows assigns memory to the NUMA node local to the CPU making the call to improve performance, reduce latency, and distribute load among nodes, in short, to be more efficient.
If we take a look at the kernel in IDA we’ll see multiple references to _KNODE or KeGetCurrentNodeNumber(), which are used to decide from which pool memory should be allocated.
With that said, let’s look at the structure itself:
0: kd> dt nt!_KNODE
+0x000 NodeNumber : Uint2B
+0x002 PrimaryNodeNumber : Uint2B
+0x004 ProximityId : Uint4B
+0x008 MaximumProcessors : Uint2B
+0x00a Flags : <unnamed-tag>
+0x00b GroupSeed : UChar
+0x00c PrimaryGroup : UChar
+0x00d Padding : [3] UChar
+0x010 ActiveGroups : _KGROUP_MASK
+0x020 SchedulerSubNodes : [32] Ptr64 _KSCHEDULER_SUBNODE
+0x120 ActiveTopologyElements : [5] Uint4B
+0x134 PerformanceSearchRanks : [8] _KNODE_SUBNODE_SEARCH_RANKS
+0x234 EfficiencySearchRanks : [8] _KNODE_SUBNODE_SEARCH_RANKS
Now, regarding the non-paged pool, the number of pages currently in use resides in nt!ExpNumberOfNonPagedPools.
- On single-processor systems, the first index of the
nt!PoolVectorarray points to the non-paged pool descriptor. - On multiprocessor systems, each node has its own non-paged pool descriptor indexed by
nt!ExpNonPagedPoolDescriptor.
There’s also session pool memory, which is used for pool allocations in per-user sessions, located in the pool descriptor nt!MM_SESSION_SPACE.
This enables session isolation between users in the Windows graphical subsystem (win32k).
Pool Descriptor
This is essentially the management structure for kernel pools. It’s responsible for current allocations, pages in use, reusable pool tracking, and basically all pool-related data.
kernels/x86/windows-7/sp1/_POOL_DESCRIPTOR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
//0x1140 bytes (sizeof)
struct _POOL_DESCRIPTOR
{
enum _POOL_TYPE PoolType; //0x0
union
{
struct _KGUARDED_MUTEX PagedLock; //0x4
ULONG NonPagedLock; //0x4
};
volatile LONG RunningAllocs; //0x40
volatile LONG RunningDeAllocs; //0x44
volatile LONG TotalBigPages; //0x48
volatile LONG ThreadsProcessingDeferrals; //0x4c
volatile ULONG TotalBytes; //0x50
ULONG PoolIndex; //0x80
volatile LONG TotalPages; //0xc0
VOID** volatile PendingFrees; //0x100
volatile LONG PendingFreeDepth; //0x104
struct _LIST_ENTRY ListHeads[512]; //0x140
};
NOTE: This structure comes from Windows 7
Windows Pool APIs
ExAllocatePoolWithTag is deprecated. According to MSDN:
1
ExAllocatePoolWithTag has been deprecated in Windows 10, version 2004 and has been replaced by [ExAllocatePool2](https://learn.microsoft.com/en-us/windows-hardware/drivers/ddi/wdm/nf-wdm-exallocatepool2). For more information, see [Updating deprecated ExAllocatePool calls to ExAllocatePool2 and ExAllocatePool3](https://learn.microsoft.com/en-us/windows-hardware/drivers/kernel/updating-deprecated-exallocatepool-calls).
Now ExAllocatePool2 is used, which includes functionality like zero-initializing the allocated memory, i.e., it wipes it clean.
ExAllocatePoolWithTag
Here’s the pseudocode from IDA:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
PVOID __stdcall ExAllocatePoolWithTag(POOL_TYPE PoolType, SIZE_T NumberOfBytes, ULONG Tag)
{
__int64 v6; // rcx
__int64 v7; // rdx
ULONG_PTR v8; // rcx
__int64 v9; // rdx
__int64 v10; // r8
ULONG v11; // r9d
PVOID result; // rax
v6 = 256;
if ( (PoolType & 1) == 0 )
{
v6 = 128;
if ( (PoolType & 0x200) != 0 )
v6 = 64;
}
if ( PoolType < NonPagedPool )
v6 = 64;
v7 = v6 | 4;
if ( (PoolType & 0x20) == 0 )
v7 = v6;
v8 = v7 | 2;
if ( (PoolType & 0x400) != 0 )
v8 = v7;
if ( (PoolType & 0xDE) != 0 )
{
v9 = v8 | 8;
if ( (PoolType & 4) == 0 )
v9 = v8;
v10 = v9 | 0x200;
if ( (PoolType & 0x80u) == 0 )
v10 = v9;
v8 = v10 | 0x400;
if ( (PoolType & 0x40) == 0 )
v8 = v10;
if ( (PoolType & 0x10) != 0 )
v8 |= 0x20uLL;
}
v11 = Tag & 0x7FFFFFFF;
if ( !v11 )
v11 = 811884866;
result = (PVOID)ExAllocatePool2(v8, NumberOfBytes, v11);
if ( !result && (PoolType & 2) != 0 )
KeBugCheckEx(0x41u, NumberOfBytes, 0, 0, 0);
return result;
}
As we can see, it’s just a “wrapper” around ExAllocatePool2.
But that can be misleading. As the MSDN notes, this function is deprecated.
So let’s look at it in Windows 10 1507:
As we can see, it differs from the version in 24H2. But now we’ll focus on the widely used and current function, ExAllocatePool2.
ExAllocatePool2 (24h2)
Here’s the pseudocode:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
ULONG_PTR __fastcall ExAllocatePool2(ULONG_PTR BugCheckParameter3, ULONG_PTR a2, ULONG_PTR a3)
{
__int64 PoolWithTagFromNode; // rsi
ULONG v4; // edi
ULONG_PTR v5; // rbx
__int64 v6; // rcx
ULONG_PTR v7; // r9
ULONG_PTR v9; // r14
_KPROCESS *Process; // r15
ULONG_PTR v11; // rax
ULONG_PTR v12; // rbp
ULONG_PTR v13; // rdx
__int16 v14; // cx
__int64 v15; // r10
_KSCHEDULING_GROUP *SchedulingGroup; // rax
unsigned __int64 *v17; // r12
char v18; // r8
unsigned __int64 v19; // r13
unsigned __int64 v20; // rax
unsigned __int64 v21; // rdx
bool v22; // zf
signed __int64 v23; // rax
unsigned __int64 v24; // rax
signed __int64 v25; // rdx
unsigned __int64 v26; // rdx
unsigned __int64 v27; // rax
unsigned __int64 v28; // rcx
__int64 HeapFromVA; // rax
ULONG_PTR v30; // rbx
_BYTE *BugCheckParameter4; // rdx
KIRQL v32; // al
int v33; // r8d
unsigned __int64 v34; // r12
unsigned int v35; // r9d
char *v36; // rcx
unsigned __int64 v37; // rcx
unsigned __int64 v38; // rcx
char v39; // al
signed __int32 v40[8]; // [rsp+0h] [rbp-A8h] BYREF
__int64 v41; // [rsp+40h] [rbp-68h]
unsigned __int64 v42; // [rsp+48h] [rbp-60h] BYREF
__int64 v43; // [rsp+50h] [rbp-58h]
ULONG_PTR v44; // [rsp+58h] [rbp-50h]
__int64 v45[2]; // [rsp+60h] [rbp-48h] BYREF
__int64 retaddr; // [rsp+A8h] [rbp+0h]
char v47; // [rsp+B0h] [rbp+8h]
__int64 v48; // [rsp+C8h] [rbp+20h] BYREF
PoolWithTagFromNode = 0;
v4 = a3;
v5 = BugCheckParameter3;
*(_OWORD *)v45 = 0;
if ( (BugCheckParameter3 & 0x1C0) == 0
|| (((BugCheckParameter3 & 0x1C0) - 1) & BugCheckParameter3 & 0x1C0) != 0
|| (BugCheckParameter3 & 0xFFFFF000) != 0
|| (BugCheckParameter3 & 0x10) != 0
|| (BugCheckParameter3 & 0x800) != 0
|| !(_DWORD)a3 )
{
v6 = 3221225485LL;
goto LABEL_4;
}
if ( (ExpPoolFlags & 8) != 0 )
{
if ( (BugCheckParameter3 & 0x200) == 0 )
{
LODWORD(v45[1]) = 32;
v45[0] = v45[0] & 0xFFFFFFFFFFFFFF00uLL | 1;
return VfHandlePoolAlloc(
NonPagedPool,
BugCheckParameter3 & 0xFFFFFFFFFFFFFFFEuLL,
a2,
a3,
LowPoolPriority,
(__int64)v45,
1,
retaddr);
}
v5 = BugCheckParameter3 & 0xFFFFFFFFFFFFFDFFuLL;
}
v7 = KeGetCurrentPrcb()->SchedulerSubNode->Affinity.Reserved[0];
if ( (v5 & 1) == 0 )
{
LODWORD(v7) = v7 | 0x80000000;
PoolWithTagFromNode = ExpAllocatePoolWithTagFromNode(v5, a2, a3, v7);
if ( PoolWithTagFromNode )
return PoolWithTagFromNode;
v6 = 3221225626LL;
LABEL_4:
if ( (v5 & 0x20) != 0 )
RtlRaiseStatus(v6);
return PoolWithTagFromNode;
}
v9 = v5;
LODWORD(v48) = 0;
v41 = 0;
Process = KeGetCurrentThread()->ApcState.Process;
if ( Process == PsInitialSystemProcess )
v9 = v5 & 0xFFFFFFFFFFFFFFFEuLL;
LODWORD(v7) = v7 | 0x80000000;
v11 = ExpAllocatePoolWithTagFromNode(v9, a2, a3, v7);
v12 = v11;
if ( !v11
|| (v9 & 1) == 0
|| ExpSpecialAllocations && (HeapFromVA = ExGetHeapFromVA(v11), (unsigned int)ExpHpIsSpecialPoolHeap(HeapFromVA)) )
{
PoolWithTagFromNode = v12;
if ( v12 )
return PoolWithTagFromNode;
LABEL_46:
v6 = 3221225626LL;
goto LABEL_4;
}
v44 = v12 & 0xFFF;
if ( (v12 & 0xFFF) != 0 )
{
v13 = v12 - 16;
if ( (*(_BYTE *)(v12 - 13) & 4) != 0 )
v13 += -16LL * (unsigned __int8)*(_WORD *)v13;
v14 = *(_WORD *)(v13 + 2);
v41 = 16LL * (unsigned __int8)v14;
LODWORD(v48) = *(_DWORD *)(v13 + 4);
if ( (v14 & 0x800) != 0 )
*(_QWORD *)(v13 + 8) = ExpPoolQuotaCookie ^ v13;
}
else
{
v32 = ExAcquireSpinLockShared(&ExpLargePoolTableLock);
v33 = 1;
v34 = v32;
v35 = (PoolBigPageTableSize - 1) & ((40543 * (v12 >> 12)) ^ ((40543 * (v12 >> 12)) >> 32));
while ( 1 )
{
v36 = (char *)PoolBigPageTable + 32 * v35;
if ( *(_QWORD *)v36 == v12 )
break;
if ( ++v35 >= (unsigned __int64)PoolBigPageTableSize )
{
if ( !v33 )
goto LABEL_62;
v35 = 0;
v33 = 0;
}
}
if ( !v36 )
LABEL_62:
KeBugCheckEx(0x19u, 0x22u, v12, (unsigned int)v9, 0);
if ( (*((_DWORD *)v36 + 3) & 0x100) != 0 )
{
*((_QWORD *)v36 + 3) = ExpPoolQuotaCookie ^ v12;
LODWORD(v48) = *((_DWORD *)v36 + 2);
v41 = *((_QWORD *)v36 + 2);
}
ExReleaseSpinLockSharedFromDpcLevel(&ExpLargePoolTableLock);
if ( KiIrqlFlags )
KiLowerIrqlProcessIrqlFlags(KeGetCurrentIrql());
__writecr8(v34);
}
if ( Process != PsInitialSystemProcess )
{
v15 = (v9 & 0x100) != 0;
SchedulingGroup = Process[1].SchedulingGroup;
v43 = v15;
v17 = (unsigned __int64 *)(&SchedulingGroup->Policy + 16 * v15);
v18 = PspResourceFlags[8 * v15];
v47 = v18;
_m_prefetchw(v17);
v19 = *v17;
_InterlockedOr(v40, 0);
LABEL_29:
v20 = v17[8];
LABEL_30:
v42 = v20;
while ( 1 )
{
v21 = v19 + v41;
if ( v19 + v41 < v19 )
break;
if ( v21 <= v20 )
{
v23 = _InterlockedCompareExchange64((volatile signed __int64 *)v17, v21, v19);
v22 = v19 == v23;
v19 = v23;
if ( !v22 )
goto LABEL_29;
_m_prefetchw(v17 + 1);
v24 = v17[1];
do
{
if ( v21 <= v24 )
break;
v37 = v24;
v24 = _InterlockedCompareExchange64((volatile signed __int64 *)v17 + 1, v21, v24);
}
while ( v24 != v37 );
if ( Process && (v18 & 4) != 0 )
{
v25 = _InterlockedExchangeAdd64((volatile signed __int64 *)&Process[1].ThreadListHead.Blink + v15, v41);
v26 = v41 + v25;
_m_prefetchw(&Process[1].DeepFreezeStartTime + v15);
v27 = *(&Process[1].DeepFreezeStartTime + v15);
do
{
if ( v26 <= v27 )
break;
v28 = v27;
v27 = _InterlockedCompareExchange64(
(volatile signed __int64 *)&Process[1].DeepFreezeStartTime + v15,
v26,
v27);
}
while ( v27 != v28 );
}
goto LABEL_48;
}
if ( (v18 & 1) == 0 || !v17[10] )
break;
v38 = _InterlockedExchange64((volatile __int64 *)v17 + 9, 0);
if ( v38 )
{
v20 = v38 + _InterlockedExchangeAdd64((volatile signed __int64 *)v17 + 8, v38);
goto LABEL_30;
}
v39 = PspExpandQuota(v15, (_DWORD)v17, v19, v41, (__int64)&v42);
v15 = v43;
if ( !v39 )
break;
v20 = v42;
v18 = v47;
}
if ( *(int *)&PspResourceFlags[8 * v15 + 4] < 0 )
{
ExFreePoolWithTag((PVOID)v12, v4);
goto LABEL_46;
}
}
LABEL_48:
v30 = 0;
if ( v44 )
{
v30 = v12 - 16;
if ( (*(_BYTE *)(v12 - 13) & 4) != 0 )
v30 += -16LL * (unsigned __int8)*(_WORD *)v30;
if ( (*(_BYTE *)(v30 + 3) & 8) == 0 )
goto LABEL_57;
BugCheckParameter4 = (_BYTE *)(ExpPoolQuotaCookie ^ *(_QWORD *)(v30 + 8) ^ v30);
*(_QWORD *)(v30 + 8) = (unsigned __int64)Process ^ ExpPoolQuotaCookie ^ v30;
}
else
{
BugCheckParameter4 = (_BYTE *)ExpStampBigPoolEntry(v12, v9, (__int64)&v48);
}
if ( BugCheckParameter4
&& BugCheckParameter4 != (_BYTE *)-1LL
&& ((unsigned __int64)BugCheckParameter4 < 0xFFFF800000000000uLL || (*BugCheckParameter4 & 0x7F) != 3) )
{
if ( v30 )
LODWORD(PoolWithTagFromNode) = *(_DWORD *)(v30 + 4);
KeBugCheckEx(0xC2u, 0xDu, v12, (unsigned int)PoolWithTagFromNode, (ULONG_PTR)BugCheckParameter4);
}
LABEL_57:
ObfReferenceObjectWithTag(Process, v4);
return v12;
}
It’s important to highlight that this is essentially a “handler” for the real kernel memory allocator.
If we dig deeper, we’ll encounter functions such as ExAllocateHeapPool(), which are much more complex and are actually responsible for performing the allocation.
Here’s a snippet from ExAllocateHeapPool():

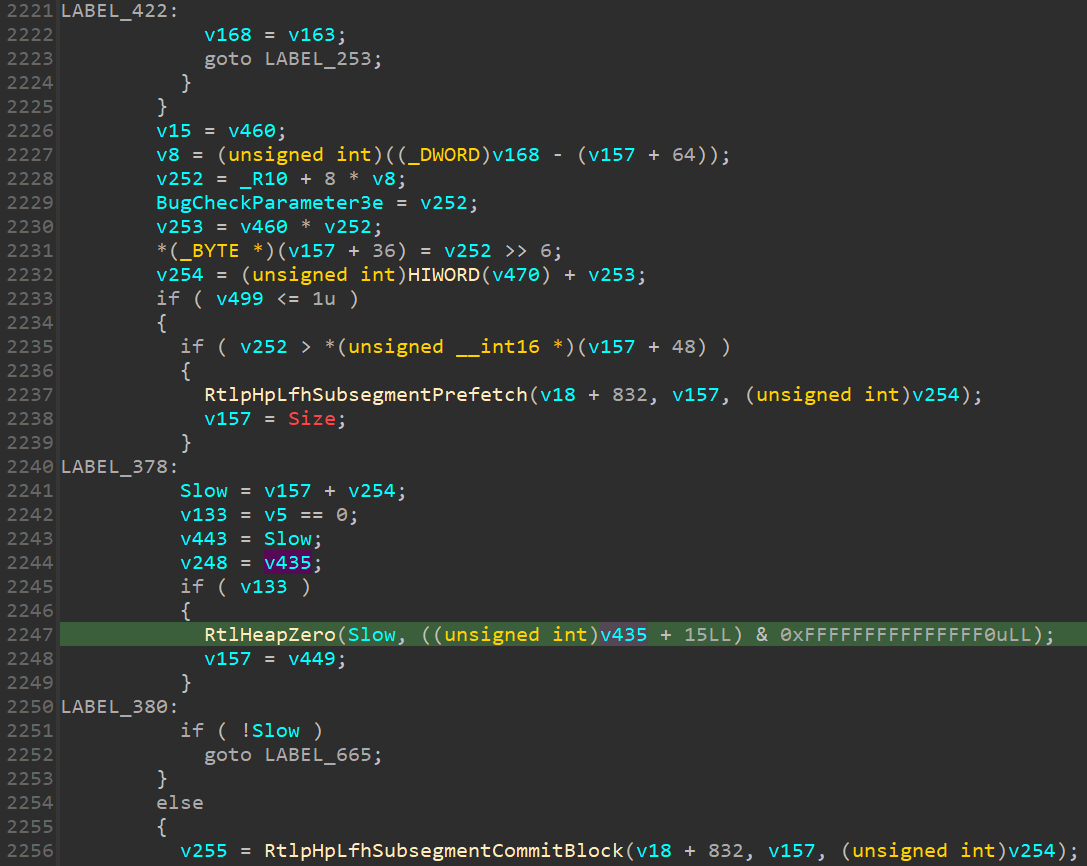

The function prototypes are as follows:
1
2
3
4
5
PVOID ExAllocatePoolWithTag(
[in] __drv_strictTypeMatch(__drv_typeExpr)POOL_TYPE PoolType,
[in] SIZE_T NumberOfBytes,
[in] ULONG Tag
);
1
2
3
4
5
DECLSPEC_RESTRICT PVOID ExAllocatePool2(
POOL_FLAGS Flags,
SIZE_T NumberOfBytes,
ULONG Tag
);
As we can see, the first parameter is PoolType from the enum POOL_FLAGS, which specifies the type of memory to be allocated:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
//0x4 bytes (sizeof)
enum _POOL_TYPE
{
NonPagedPool = 0,
NonPagedPoolExecute = 0,
PagedPool = 1,
NonPagedPoolMustSucceed = 2,
DontUseThisType = 3,
NonPagedPoolCacheAligned = 4,
PagedPoolCacheAligned = 5,
NonPagedPoolCacheAlignedMustS = 6,
MaxPoolType = 7,
NonPagedPoolBase = 0,
NonPagedPoolBaseMustSucceed = 2,
NonPagedPoolBaseCacheAligned = 4,
NonPagedPoolBaseCacheAlignedMustS = 6,
NonPagedPoolSession = 32,
PagedPoolSession = 33,
NonPagedPoolMustSucceedSession = 34,
DontUseThisTypeSession = 35,
NonPagedPoolCacheAlignedSession = 36,
PagedPoolCacheAlignedSession = 37,
NonPagedPoolCacheAlignedMustSSession = 38,
NonPagedPoolNx = 512,
NonPagedPoolNxCacheAligned = 516,
NonPagedPoolSessionNx = 544
};
More Pool Internals
Every single allocated pool block is preceded by a _POOL_HEADER structure (0x10 or 16 bytes in size):
1: kd> dt nt!_POOL_HEADER
+0x000 PreviousSize : Pos 0, 8 Bits
+0x000 PoolIndex : Pos 8, 8 Bits
+0x002 BlockSize : Pos 0, 8 Bits
+0x002 PoolType : Pos 8, 8 Bits
+0x000 Ulong1 : Uint4B
+0x004 PoolTag : Uint4B
+0x008 ProcessBilled : Ptr64 _EPROCESS
+0x008 AllocatorBackTraceIndex : Uint2B
+0x00a PoolTagHash : Uint2B
This structure is very useful, as it provides plenty of information about the allocated block.
In Vergilius, it would look like this:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
//0x10 bytes (sizeof)
struct _POOL_HEADER
{
union
{
struct
{
USHORT PreviousSize:8; //0x0
USHORT PoolIndex:8; //0x0
USHORT BlockSize:8; //0x2
USHORT PoolType:8; //0x2
};
ULONG Ulong1; //0x0
};
ULONG PoolTag; //0x4
union
{
struct _EPROCESS* ProcessBilled; //0x8
struct
{
USHORT AllocatorBackTraceIndex; //0x8
USHORT PoolTagHash; //0xa
};
};
};
As shown in the following example, we place a breakpoint in ExAllocatePool2(), step out, and then run the !pool utility on rax, which holds the result, the address of the allocated memory returned by the caller:
0: kd> bp nt!ExAllocatePool2
0: kd> g
Breakpoint 0 hit
nt!ExAllocatePool2:
fffff805`c21650f0 48895c2410 mov qword ptr [rsp+10h],rbx
0: kd> gu
nt!KiInsertNewDpcRuntime+0x55:
fffff805`c1a251d5 4c8bf0 mov r14,rax
0: kd> r rax
rax=ffffe18f1d5cf710
0: kd> !pool @rax
Pool page ffffe18f1d5cf710 region is Nonpaged pool
ffffe18f1d5cf010 size: 30 previous size: 0 (Free) PsIn
ffffe18f1d5cf040 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cf070 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cf0a0 size: 30 previous size: 0 (Free) IoUs
ffffe18f1d5cf0d0 size: 30 previous size: 0 (Free) PsIn
ffffe18f1d5cf100 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cf130 size: 30 previous size: 0 (Free) PsIn
ffffe18f1d5cf160 size: 30 previous size: 0 (Free) PsIn
ffffe18f1d5cf190 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cf1c0 size: 30 previous size: 0 (Free) Ipng
ffffe18f1d5cf1f0 size: 30 previous size: 0 (Free) IoUs
ffffe18f1d5cf220 size: 30 previous size: 0 (Free) IoSB
ffffe18f1d5cf250 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cf280 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cf2b0 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cf2e0 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cf310 size: 30 previous size: 0 (Free) IoUs
ffffe18f1d5cf340 size: 30 previous size: 0 (Free) IoUs
ffffe18f1d5cf370 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cf3a0 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cf3d0 size: 30 previous size: 0 (Allocated) IoCc
ffffe18f1d5cf400 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cf430 size: 30 previous size: 0 (Free) IoUs
ffffe18f1d5cf460 size: 30 previous size: 0 (Free) IoUs
ffffe18f1d5cf490 size: 30 previous size: 0 (Free) IoUs
ffffe18f1d5cf4c0 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cf4f0 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cf520 size: 30 previous size: 0 (Free) Ipng
ffffe18f1d5cf550 size: 30 previous size: 0 (Free) IoCc
ffffe18f1d5cf580 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cf5b0 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cf5e0 size: 30 previous size: 0 (Free) CTMM
ffffe18f1d5cf610 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cf640 size: 30 previous size: 0 (Free) IoFE
ffffe18f1d5cf670 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cf6a0 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cf6d0 size: 30 previous size: 0 (Allocated) FOCX
*ffffe18f1d5cf700 size: 30 previous size: 0 (Allocated) *Drht
Owning component : Unknown (update pooltag.txt)
ffffe18f1d5cf730 size: 30 previous size: 0 (Allocated) IoCc
ffffe18f1d5cf760 size: 30 previous size: 0 (Free) IoUs
ffffe18f1d5cf790 size: 30 previous size: 0 (Free) IoUs
ffffe18f1d5cf7c0 size: 30 previous size: 0 (Free) FOCX
ffffe18f1d5cf7f0 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cf820 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cf850 size: 30 previous size: 0 (Free) IoFE
ffffe18f1d5cf880 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cf8b0 size: 30 previous size: 0 (Free) IoUs
ffffe18f1d5cf8e0 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cf910 size: 30 previous size: 0 (Free) FOCX
ffffe18f1d5cf940 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cf970 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cf9a0 size: 30 previous size: 0 (Allocated) NDFL
ffffe18f1d5cf9d0 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cfa00 size: 30 previous size: 0 (Free) IoFE
ffffe18f1d5cfa30 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cfa60 size: 30 previous size: 0 (Free) IoFE
ffffe18f1d5cfa90 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cfac0 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cfaf0 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cfb20 size: 30 previous size: 0 (Free) FOCX
ffffe18f1d5cfb50 size: 30 previous size: 0 (Free) FOCX
ffffe18f1d5cfb80 size: 30 previous size: 0 (Free) IoFE
ffffe18f1d5cfbb0 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cfbe0 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cfc10 size: 30 previous size: 0 (Free) FOCX
ffffe18f1d5cfc40 size: 30 previous size: 0 (Free) IoFE
ffffe18f1d5cfc70 size: 30 previous size: 0 (Free) FOCX
ffffe18f1d5cfca0 size: 30 previous size: 0 (Free) FOCX
ffffe18f1d5cfcd0 size: 30 previous size: 0 (Free) IoFE
ffffe18f1d5cfd00 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cfd30 size: 30 previous size: 0 (Free) FOCX
ffffe18f1d5cfd60 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cfd90 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cfdc0 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cfdf0 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cfe20 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cfe50 size: 30 previous size: 0 (Free) IoFE
ffffe18f1d5cfe80 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cfeb0 size: 30 previous size: 0 (Allocated) FOCX
ffffe18f1d5cfee0 size: 30 previous size: 0 (Allocated) IoFE
ffffe18f1d5cff10 size: 30 previous size: 0 (Free) FOCX
ffffe18f1d5cff40 size: 30 previous size: 0 (Free) IoFE
ffffe18f1d5cff70 size: 30 previous size: 0 (Free) IoFE
ffffe18f1d5cffa0 size: 30 previous size: 0 (Free) IoFE
ffffe18f1d5cffd0 size: 30 previous size: 0 (Allocated) FOCX
The one we’re interested in appears to be:
...
*ffffe18f1d5cf700 size: 30 previous size: 0 (Allocated) *Drht
...
So we inspect the _POOL_HEADER structure for that pool allocation:
0: kd> dt nt!_POOL_HEADER ffffe18f1d5cf700
+0x000 PreviousSize : 0y00000000 (0)
+0x000 PoolIndex : 0y00000000 (0)
+0x002 BlockSize : 0y00000011 (0x3)
+0x002 PoolType : 0y00000010 (0x2)
+0x000 Ulong1 : 0x2030000
+0x004 PoolTag : 0x74687244
+0x008 ProcessBilled : (null)
+0x008 AllocatorBackTraceIndex : 0
+0x00a PoolTagHash : 0
As we can see, ProcessBilled is null because this was a standard allocation without POOL_QUOTA.
Why? Because some allocations don’t use POOL_QUOTA. In fact, by default, allocations are made without it.
This means the kernel does not keep track of which process owns the allocated pool memory.
As a result, the ProcessBilled field is not filled in.
NOTE: When using POOL_QUOTA, the _EPROCESS pointer stored in ProcessBilled is obfuscated via XOR with a random cookie.
Segment Heap
The segment heap is code (everything is, really) that provides different behaviors based on the size of the allocation.
First, let’s look at the top-level structure of the heap, _HEAP:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
//0x2c0 bytes (sizeof)
struct _HEAP
{
union
{
struct _HEAP_SEGMENT Segment; //0x0
struct
{
struct _HEAP_ENTRY Entry; //0x0
ULONG SegmentSignature; //0x10
ULONG SegmentFlags; //0x14
struct _LIST_ENTRY SegmentListEntry; //0x18
struct _HEAP* Heap; //0x28
VOID* BaseAddress; //0x30
ULONG NumberOfPages; //0x38
struct _HEAP_ENTRY* FirstEntry; //0x40
struct _HEAP_ENTRY* LastValidEntry; //0x48
ULONG NumberOfUnCommittedPages; //0x50
ULONG NumberOfUnCommittedRanges; //0x54
USHORT SegmentAllocatorBackTraceIndex; //0x58
USHORT Reserved; //0x5a
struct _LIST_ENTRY UCRSegmentList; //0x60
};
};
ULONG Flags; //0x70
ULONG ForceFlags; //0x74
ULONG CompatibilityFlags; //0x78
ULONG EncodeFlagMask; //0x7c
struct _HEAP_ENTRY Encoding; //0x80
ULONG Interceptor; //0x90
ULONG VirtualMemoryThreshold; //0x94
ULONG Signature; //0x98
ULONGLONG SegmentReserve; //0xa0
ULONGLONG SegmentCommit; //0xa8
ULONGLONG DeCommitFreeBlockThreshold; //0xb0
ULONGLONG DeCommitTotalFreeThreshold; //0xb8
ULONGLONG TotalFreeSize; //0xc0
ULONGLONG MaximumAllocationSize; //0xc8
USHORT ProcessHeapsListIndex; //0xd0
USHORT HeaderValidateLength; //0xd2
VOID* HeaderValidateCopy; //0xd8
USHORT NextAvailableTagIndex; //0xe0
USHORT MaximumTagIndex; //0xe2
struct _HEAP_TAG_ENTRY* TagEntries; //0xe8
struct _LIST_ENTRY UCRList; //0xf0
ULONGLONG AlignRound; //0x100
ULONGLONG AlignMask; //0x108
struct _LIST_ENTRY VirtualAllocdBlocks; //0x110
struct _LIST_ENTRY SegmentList; //0x120
USHORT AllocatorBackTraceIndex; //0x130
ULONG NonDedicatedListLength; //0x134
VOID* BlocksIndex; //0x138
VOID* UCRIndex; //0x140
struct _HEAP_PSEUDO_TAG_ENTRY* PseudoTagEntries; //0x148
struct _LIST_ENTRY FreeLists; //0x150
struct _HEAP_LOCK* LockVariable; //0x160
LONG (*CommitRoutine)(VOID* arg1, VOID** arg2, ULONGLONG* arg3); //0x168
union _RTL_RUN_ONCE StackTraceInitVar; //0x170
struct _RTLP_HEAP_COMMIT_LIMIT_DATA CommitLimitData; //0x178
VOID* UserContext; //0x188
ULONGLONG Spare; //0x190
VOID* FrontEndHeap; //0x198
USHORT FrontHeapLockCount; //0x1a0
UCHAR FrontEndHeapType; //0x1a2
UCHAR RequestedFrontEndHeapType; //0x1a3
USHORT* FrontEndHeapUsageData; //0x1a8
USHORT FrontEndHeapMaximumIndex; //0x1b0
volatile UCHAR FrontEndHeapStatusBitmap[129]; //0x1b2
union
{
UCHAR ReadOnly:1; //0x233
UCHAR InternalFlags; //0x233
};
struct _HEAP_COUNTERS Counters; //0x238
struct _HEAP_TUNING_PARAMETERS TuningParameters; //0x2b0
};
As shown, it contains the _LIST_ENTRY of all heap segments. There are four well-known types of these segments.
This explanation is based on this excellent paper.
To handle allocation sizes, there are four “types” of allocation engines (or internal mechanisms) that the segment heap uses depending on allocation size (From smallest to largest):
- Low Fragmentation Heap (LFH) -> alloc ≤
0x200(≤ 512B) - Variable Size (VS) -> alloc ≤
0x20000(513B – 128 KiB) - Segment Alloc -> alloc ≤
0x7f000(128 KiB – ~7 MiB) - Large Alloc -> alloc ≤
0x200(> ~7 MiB)
_SEGMENT_HEAP
is a kernel data structure that represents an instance of the segment heap. It is present in both user mode and kernel mode. It contains pointers and global configs, internal engines (LFH, VS, Segment), limits, segment lists… In summary, it organizes all the backends of the segment heap (pointers to _HEAP_LFH_CONTEXT, _HEAP_VS_CONTEXT, and _HEAP_SEG_CONTEXT), and also includes signatures and encoded pointers that hinder exploitation, among other things.
The structure is as follows:
0: kd> dt nt!_SEGMENT_HEAP
+0x000 EnvHandle : RTL_HP_ENV_HANDLE
+0x010 Signature : Uint4B
+0x014 GlobalFlags : Uint4B
+0x018 Interceptor : Uint4B
+0x01c ProcessHeapListIndex : Uint2B
+0x01e AllocatedFromMetadata : Pos 0, 1 Bit
+0x01e ReadOnly : Pos 1, 1 Bit
+0x01e InternalFlags : Uint2B
+0x020 CommitLimitData : _RTLP_HEAP_COMMIT_LIMIT_DATA
+0x030 ReservedMustBeZero : Uint8B
+0x038 UserContext : Ptr64 Void
+0x040 LargeMetadataLock : Uint8B
+0x048 LargeAllocMetadata : _RTL_RB_TREE
+0x058 LargeReservedPages : Uint8B
+0x060 LargeCommittedPages : Uint8B
+0x068 Tag : Uint8B
+0x070 StackTraceInitVar : _RTL_RUN_ONCE
+0x080 MemStats : _HEAP_RUNTIME_MEMORY_STATS
+0x0e0 GlobalLockOwner : Uint4B
+0x0e8 ContextExtendLock : Uint8B
+0x0f0 AllocatedBase : Ptr64 UChar
+0x0f8 UncommittedBase : Ptr64 UChar
+0x100 ReservedLimit : Ptr64 UChar
+0x108 ReservedRegionEnd : Ptr64 UChar
+0x110 CallbacksEncoded : _RTL_HP_HEAP_VA_CALLBACKS_ENCODED
+0x140 SegContexts : [2] _HEAP_SEG_CONTEXT
+0x2c0 VsContext : _HEAP_VS_CONTEXT
+0x340 LfhContext : _HEAP_LFH_CONTEXT
However, the structure from Vergilius sheds more light:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
//0x70 bytes (sizeof)
struct _HEAP_SEGMENT
{
struct _HEAP_ENTRY Entry; //0x0
ULONG SegmentSignature; //0x10
ULONG SegmentFlags; //0x14
struct _LIST_ENTRY SegmentListEntry; //0x18
struct _HEAP* Heap; //0x28
VOID* BaseAddress; //0x30
ULONG NumberOfPages; //0x38
struct _HEAP_ENTRY* FirstEntry; //0x40
struct _HEAP_ENTRY* LastValidEntry; //0x48
ULONG NumberOfUnCommittedPages; //0x50
ULONG NumberOfUnCommittedRanges; //0x54
USHORT SegmentAllocatorBackTraceIndex; //0x58
USHORT Reserved; //0x5a
struct _LIST_ENTRY UCRSegmentList; //0x60
};
At first glance, there are four known structures for the different _POOL_TYPEs:
NonPagedNonPagedNx- Paged Pools
- Paged Session Pool
The first three are stored in HEAP_POOL_NODES
Segment Backend
The segment backend context is as follows:
0: kd> dt nt!_HEAP_SEG_CONTEXT
+0x000 SegmentMask : Uint8B
+0x008 UnitShift : UChar
+0x009 PagesPerUnitShift : UChar
+0x00a FirstDescriptorIndex : UChar
+0x00b CachedCommitSoftShift : UChar
+0x00c CachedCommitHighShift : UChar
+0x00d Flags : <unnamed-tag>
+0x010 MaxAllocationSize : Uint4B
+0x014 OlpStatsOffset : Int2B
+0x016 MemStatsOffset : Int2B
+0x018 LfhContext : Ptr64 Void
+0x020 VsContext : Ptr64 Void
+0x028 EnvHandle : RTL_HP_ENV_HANDLE
+0x038 Heap : Ptr64 Void
+0x040 SegmentLock : Uint8B
+0x048 SegmentListHead : _LIST_ENTRY
+0x058 SegmentCount : Uint8B
+0x060 FreePageRanges : _RTL_RB_TREE
+0x070 FreeSegmentListLock : Uint8B
+0x078 FreeSegmentList : [2] _SINGLE_LIST_ENTRY
The segment backend is a part of the heap manager that handles large allocations, and by large we mean from 128 kilobytes up to 7 gigabytes.
These sizes are too big to be managed by other backends like VS or LFH, as we’ve seen before.
Looking at the structure in Vergilius, it becomes clearer:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
//0xc0 bytes (sizeof)
struct _HEAP_SEG_CONTEXT
{
ULONGLONG SegmentMask; //0x0
UCHAR UnitShift; //0x8
UCHAR PagesPerUnitShift; //0x9
UCHAR FirstDescriptorIndex; //0xa
UCHAR CachedCommitSoftShift; //0xb
UCHAR CachedCommitHighShift; //0xc
union
{
UCHAR LargePagePolicy:3; //0xd
UCHAR FullDecommit:1; //0xd
UCHAR ReleaseEmptySegments:1; //0xd
UCHAR AllFlags; //0xd
} Flags; //0xd
ULONG MaxAllocationSize; //0x10
SHORT OlpStatsOffset; //0x14
SHORT MemStatsOffset; //0x16
VOID* LfhContext; //0x18
VOID* VsContext; //0x20
struct RTL_HP_ENV_HANDLE EnvHandle; //0x28
VOID* Heap; //0x38
ULONGLONG SegmentLock; //0x40
struct _LIST_ENTRY SegmentListHead; //0x48
ULONGLONG SegmentCount; //0x58
struct _RTL_RB_TREE FreePageRanges; //0x60
ULONGLONG FreeSegmentListLock; //0x70
struct _SINGLE_LIST_ENTRY FreeSegmentList[2]; //0x78
};
VS and LFH manage allocations visible to the user or kernel, and they in turn request large memory blocks from the segment backend to subdivide them into smaller chunks as needed.
In other words, the segment heap acts like a (loosely speaking) “lower ring” that provides large memory chunks for VS and LFH to subdivide.
The segment backend allocates memory in variable-sized blocks called segments, each composed of multiple assignable pages, all managed using a Red-Black tree FreePageRanges -> _RTL_RB_TREE
1
2
3
4
5
6
7
8
9
10
//0x10 bytes (sizeof)
struct _RTL_RB_TREE
{
struct _RTL_BALANCED_NODE* Root; //0x0
union
{
UCHAR Encoded:1; //0x8
struct _RTL_BALANCED_NODE* Min; //0x8
};
};
As previously mentioned, the segments are stored in a list in SegmentListHead, and are preceded by a _HEAP_PAGE_SEGMENT structure followed by 256 _HEAP_PAGE_RANGE_DESCRIPTOR, as shown below:
0: kd> dt nt!_HEAP_PAGE_SEGMENT
+0x000 ListEntry : _LIST_ENTRY
+0x010 Signature : Uint8B
+0x018 SegmentCommitState : Ptr64 _HEAP_SEGMENT_MGR_COMMIT_STATE
+0x020 UnusedWatermark : UChar
+0x000 DescArray : [256] _HEAP_PAGE_RANGE_DESCRIPTOR
0: kd> dt nt!_HEAP_PAGE_RANGE_DESCRIPTOR
+0x000 TreeNode : _RTL_BALANCED_NODE
+0x000 TreeSignature : Uint4B
+0x004 UnusedBytes : Uint4B
+0x008 ExtraPresent : Pos 0, 1 Bit
+0x008 Spare0 : Pos 1, 15 Bits
+0x018 RangeFlags : UChar
+0x019 CommittedPageCount : UChar
+0x01a UnitOffset : UChar
+0x01b Spare : UChar
+0x01c Key : _HEAP_DESCRIPTOR_KEY
+0x01c Align : [3] UChar
+0x01f UnitSize : UChar
And in Vergilius:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
//0x2000 bytes (sizeof)
union _HEAP_PAGE_SEGMENT
{
struct
{
struct _LIST_ENTRY ListEntry; //0x0
ULONGLONG Signature; //0x10
};
struct
{
union _HEAP_SEGMENT_MGR_COMMIT_STATE* SegmentCommitState; //0x18
UCHAR UnusedWatermark; //0x20
};
struct _HEAP_PAGE_RANGE_DESCRIPTOR DescArray[256]; //0x0
};
The _HEAP_PAGE_RANGE_DESCRIPTOR is:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
//0x20 bytes (sizeof)
struct _HEAP_PAGE_RANGE_DESCRIPTOR
{
union
{
struct _RTL_BALANCED_NODE TreeNode; //0x0
struct
{
ULONG TreeSignature; //0x0
ULONG UnusedBytes; //0x4
USHORT ExtraPresent:1; //0x8
USHORT Spare0:15; //0x8
};
};
volatile UCHAR RangeFlags; //0x18
UCHAR CommittedPageCount; //0x19
UCHAR UnitOffset; //0x1a
UCHAR Spare; //0x1b
union
{
struct _HEAP_DESCRIPTOR_KEY Key; //0x1c
struct
{
UCHAR Align[3]; //0x1c
UCHAR UnitSize; //0x1f
};
};
};
Each _HEAP_PAGE_SEGMENT has a unique signature computed via XOR with several pointers and a constant, which helps validate the segment and recover its context.
Variable Size Backend
Variable Size or VS backend allocates blocks from 512 bytes up to 128 kilobytes, as seen before. It enables reuse of freed blocks, and its context resides in the _HEAP_VS_CONTEXT structure:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
//0xc0 bytes (sizeof)
struct _HEAP_VS_CONTEXT
{
ULONGLONG Lock; //0x0
enum _RTLP_HP_LOCK_TYPE LockType; //0x8
SHORT MemStatsOffset; //0xc
struct _RTL_RB_TREE FreeChunkTree; //0x10
struct _LIST_ENTRY SubsegmentList; //0x20
ULONGLONG TotalCommittedUnits; //0x30
ULONGLONG FreeCommittedUnits; //0x38
struct _HEAP_VS_DELAY_FREE_CONTEXT DelayFreeContext; //0x40
VOID* BackendCtx; //0x80
struct _HEAP_SUBALLOCATOR_CALLBACKS Callbacks; //0x88
struct _RTL_HP_VS_CONFIG Config; //0xb8
ULONG EliminatePointers:1; //0xbc
};

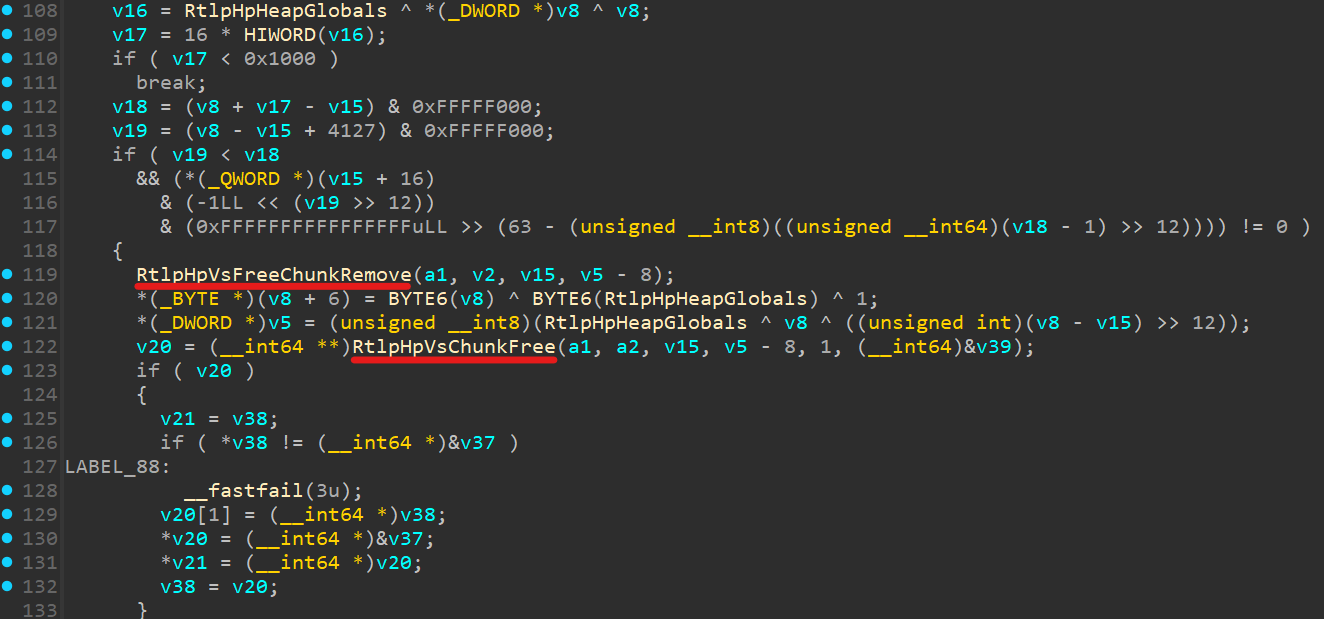

VS uses a Red-Black tree to efficiently locate and organize free blocks via FreeChunkTree.
Each memory block has a header encrypted with XOR for integrity, and if the found chunk is larger than needed, it is dynamically split. If no suitable chunk is available, the backend requests a new subsegment from the Segment Backend (as previously discussed).
Free blocks are preceded by a structure called _HEAP_VS_CHUNK_FREE_HEADER:
1
2
3
4
5
6
7
8
9
10
11
12
13
//0x20 bytes (sizeof)
struct _HEAP_VS_CHUNK_FREE_HEADER
{
union
{
struct _HEAP_VS_CHUNK_HEADER Header; //0x0
struct
{
ULONGLONG OverlapsHeader; //0x0
struct _RTL_BALANCED_NODE Node; //0x8
};
};
};
Once the free block is found, it is split to the appropriate size via RtlpHpVsChunkSplit()
{thanks again to C. Bayet, P. Fariello : ) }
The allocated block is preceded by the _HEAP_VS_CHUNK_HEADER structure:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
//0x10 bytes (sizeof)
struct _HEAP_VS_CHUNK_HEADER
{
union _HEAP_VS_CHUNK_HEADER_SIZE Sizes; //0x0
union
{
struct
{
ULONG EncodedSegmentPageOffset:8; //0x8
ULONG UnusedBytes:1; //0x8
ULONG SkipDuringWalk:1; //0x8
ULONG Spare:22; //0x8
};
ULONG AllocatedChunkBits; //0x8
};
};
All header fields are XORed with RtlpHpHeapGlobals.
The VS allocator internally depends on the segment allocator to obtain large raw memory blocks (subsegments).
When VS doesn’t find a suitable free chunk in the tree (FreeChunkTree), it reserves more memory from the OS through the Segment allocator using _HEAP_SUBALLOCATOR_CALLBACKS, found inside _HEAP_VS_CONTEXT:
1
2
3
4
5
6
7
8
9
10
//0x30 bytes (sizeof)
struct _HEAP_SUBALLOCATOR_CALLBACKS
{
ULONGLONG Allocate; //0x0
ULONGLONG Free; //0x8
ULONGLONG Commit; //0x10
ULONGLONG Decommit; //0x18
ULONGLONG ExtendContext; //0x20
ULONGLONG TlsCleanup; //0x28
};
RtlpHpVsSubsegmentCreate() is responsible for creating a new subsegment for the VS backend when no blocks are available in the FreeChunkTree:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
__int64 __fastcall RtlpHpVsSubsegmentCreate(__int64 a1, int a2)
{
__int64 v2; // rdi
int v3; // r14d
unsigned int v5; // edx
unsigned int v6; // r14d
unsigned int v7; // ecx
unsigned int v8; // ebx
__int64 v9; // rcx
__int64 v10; // rax
__int64 v11; // rbp
unsigned int v12; // r14d
__int64 v13; // rcx
int v14; // eax
__int64 v16; // rcx
int v17; // [rsp+60h] [rbp+8h] BYREF
unsigned int v18; // [rsp+68h] [rbp+10h] BYREF
unsigned int v19; // [rsp+70h] [rbp+18h]
v2 = 0;
v3 = 16 * a2;
v5 = 32 * a2 + 48;
v18 = 0;
v6 = (v3 + 4143) & 0xFFFFF000;
v17 = 0;
v19 = 0;
if ( ((v5 - 1) & v5) != 0 )
{
_BitScanReverse(&v7, v5);
v19 = v7;
v5 = 1 << (v7 + 1);
}
v8 = 0x10000;
if ( v5 > 0x10000 )
{
v8 = v5;
if ( v5 >= 0x40000 )
v8 = 0x40000;
}
while ( 1 )
{
v9 = *(_QWORD *)(a1 + 8) ^ a1;
v10 = (__int64 (__fastcall *)(_QWORD, _QWORD, _QWORD, _QWORD))(a1 ^ RtlpHpHeapGlobals ^ *(_QWORD *)(a1 + 16)) == RtlpHpSegVsAllocate
? RtlpHpSegVsAllocate(v9, v8, &v17, &v18)
: guard_dispatch_icall_no_overrides(v9);
v11 = v10;
if ( v10 )
break;
v8 = v18;
if ( v18 < v6 )
return v2;
}
v12 = 4096;
if ( (v17 & 1) != 0 )
v12 = v8;
v13 = *(_QWORD *)(a1 + 8) ^ a1;
if ( (__int64 (__fastcall *)(_QWORD, _QWORD, _QWORD, _QWORD))(a1 ^ RtlpHpHeapGlobals ^ *(_QWORD *)(a1 + 32)) == RtlpHpSegLfhVsCommit )
v14 = RtlpHpSegLfhVsCommit(v13, v10, v12, 0);
else
v14 = guard_dispatch_icall_no_overrides(v13);
if ( v14 < 0 )
{
v16 = *(_QWORD *)(a1 + 8) ^ a1;
if ( (__int64 (__fastcall *)(_QWORD, _QWORD, _QWORD))(a1 ^ RtlpHpHeapGlobals ^ *(_QWORD *)(a1 + 24)) == RtlpHpSegLfhVsFree )
RtlpHpSegLfhVsFree(v16, v11, v8);
else
guard_dispatch_icall_no_overrides(v16);
}
else
{
_InterlockedAdd64((volatile signed __int64 *)(a1 + 80), (unsigned __int64)v12 >> 12);
RtlpHpVsSubsegmentInitialize(v11, v8, v12);
return v11;
}
return v2;
}
This would be the _HEAP_VS_SUBSEGMENT structure:
1
2
3
4
5
6
7
8
9
10
//0x28 bytes (sizeof)
struct _HEAP_VS_SUBSEGMENT
{
struct _LIST_ENTRY ListEntry; //0x0
ULONGLONG CommitBitmap; //0x10
ULONGLONG CommitLock; //0x18
USHORT Size; //0x20
USHORT Signature:15; //0x22
USHORT FullCommit:1; //0x22
};
Lastly, when a VS block is truly freed, if it’s contiguous with two other freed blocks, the three are merged by calling RtlpHpVsChunkCoalesce(), and then inserted back into the FreeChunkTree.
However, during my research in Windows 24H2, I couldn’t find RtlHpVsChunkCoalesce(), but I did find a function with similar behavior: RtlpHpVsSlotCompactChunks(), which apparently serves a similar purpose.
Low Fragmentation Heap Backend
The low fragmentation heap is a backend dedicated to small allocations ranging from 1 byte to 512 bytes.
Below is the _HEAP_LFH_CONTEXT:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
//0x6c0 bytes (sizeof)
struct _HEAP_LFH_CONTEXT
{
VOID* BackendCtx; //0x0
struct _HEAP_SUBALLOCATOR_CALLBACKS Callbacks; //0x8
UCHAR* AffinityModArray; //0x38
UCHAR MaxAffinity; //0x40
UCHAR LockType; //0x41
SHORT MemStatsOffset; //0x42
struct _HEAP_LFH_CONFIG Config; //0x44
ULONG TlsSlotIndex; //0x4c
ULONGLONG EncodeKey; //0x50
ULONGLONG ExtensionLock; //0x80
struct _SINGLE_LIST_ENTRY MetadataList[4]; //0x88
struct _HEAP_LFH_HEAT_MAP HeatMap; //0xc0
struct _HEAP_LFH_BUCKET* Buckets[128]; //0x1c0
struct _HEAP_LFH_SLOT_MAP SlotMaps[1]; //0x5c0
};
LFH subdivides the maximum memory (512 bytes) into 129 buckets with increasing granularities:
- Granularity 16 bytes: Index 1-64 -> 1B - 1008B allocation
- Granularity 64 bytes: Index 65-80 -> 1009B - 2032B allocation
- Granularity 128 bytes: Index 81-96 -> 2033B - 4080B allocation
- Granularity 256 bytes: Index 97-112 -> 4081B - 8176B allocation
- Granularity 512 bytes: Index 113-128 -> 8177B - 16368B allocation
Each LFH bucket is composed of one or more subsegments obtained via the segment allocator, invoked through the _HEAP_SUBALLOCATOR_CALLBACKS field inside _HEAP_LFH_CONTEXT, which contains function pointers for Allocate, Free, Commit, and Decommit.
1
2
3
4
5
6
7
8
9
10
//0x30 bytes (sizeof)
struct _HEAP_SUBALLOCATOR_CALLBACKS
{
ULONGLONG Allocate; //0x0
ULONGLONG Free; //0x8
ULONGLONG Commit; //0x10
ULONGLONG Decommit; //0x18
ULONGLONG ExtendContext; //0x20
ULONGLONG TlsCleanup; //0x28
};
To protect the mentioned pointers, they are XORed with the context address and with RtlpHpHeapGlobals.
Once a subsegment is assigned, it is internally divided into multiple LFH blocks of the bucket’s size. Ex: a subsegment for 128-byte blocks will be entirely divided into 128-byte blocks.
The _HEAP_LFH_SUBSEGMENT structure is the header of each subsegment and contains essential data:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
//0x48 bytes (sizeof)
struct _HEAP_LFH_SUBSEGMENT
{
struct _LIST_ENTRY ListEntry; //0x0
union _HEAP_LFH_SUBSEGMENT_STATE State; //0x10
union
{
struct _SINGLE_LIST_ENTRY OwnerFreeListEntry; //0x18
struct
{
UCHAR CommitStateOffset; //0x18
UCHAR Spare0:4; //0x19
};
};
USHORT FreeCount; //0x20
USHORT BlockCount; //0x22
UCHAR FreeHint; //0x24
UCHAR WitheldBlockCount; //0x25
union
{
struct
{
UCHAR CommitUnitShift; //0x26
UCHAR CommitUnitCount; //0x27
};
union _HEAP_LFH_COMMIT_UNIT_INFO CommitUnitInfo; //0x26
};
struct _HEAP_LFH_SUBSEGMENT_ENCODED_OFFSETS BlockOffsets; //0x28
USHORT BucketRef; //0x2c
USHORT PrivateSlotMapRef; //0x2e
USHORT HighWatermarkBlockIndex; //0x30
UCHAR BitmapSearchWidth; //0x32
union
{
struct
{
UCHAR PrivateFormat:1; //0x33
UCHAR Spare1:7; //0x33
};
union _HEAP_LFH_SUBSEGMENT_UCHAR_FIELDS UChar; //0x33
};
ULONG Spare3; //0x34
ULONGLONG CommitLock; //0x38
ULONGLONG BlockBitmap[1]; //0x40
};
To track which blocks in a subsegment are free or occupied, the BlockBitmap is used, where each bit represents a block, 0 (off) for free, 1 (on) for allocated. There’s also a field called FreeHint, which points to the last freed block and acts as a checkpoint to scan the bitmap for the next free block.
IMPORTANT: The bitmap scan is randomized using a table. This helps distribute allocations across the entire subsegment, preventing predictable patterns and improving security against heap feng shui-style techniques.
Dynamic Lookaside
An optimization mechanism for the heap allocator designed to speed up medium-sized memory allocations and deallocations (0x200 (512 bytes) to 0xF80 (3968 bytes)).
It works by temporarily storing blocks in a lookaside list for faster future allocations. This allows blocks of the same size to be reallocated without extra cost.
Managed by _RTL_DYNAMIC_LOOKASIDE, which is referenced from the UserContext field in _SEGMENT_HEAP:
1
2
3
4
5
6
7
8
//0x1040 bytes (sizeof)
struct _RTL_DYNAMIC_LOOKASIDE
{
ULONGLONG EnabledBucketBitmap; //0x0
ULONG BucketCount; //0x8
ULONG ActiveBucketCount; //0xc
struct _RTL_LOOKASIDE Buckets[64]; //0x40
};
This structure contains up to 64 individual lists called _RTL_LOOKASIDE, each representing a block size class:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
//0x40 bytes (sizeof)
struct _RTL_LOOKASIDE
{
union _SLIST_HEADER ListHead; //0x0
USHORT Depth; //0x10
USHORT MaximumDepth; //0x12
ULONG TotalAllocates; //0x14
ULONG AllocateMisses; //0x18
ULONG TotalFrees; //0x1c
ULONG FreeMisses; //0x20
ULONG LastTotalAllocates; //0x24
ULONG LastAllocateMisses; //0x28
ULONG LastTotalFrees; //0x2c
};
The sizes follow this granularity:
- Granularity 16 bytes: Index 1-32 -> 512B - 1024B allocation
- Granularity 64 bytes: Index 33-48 -> 1025B - 2048B allocation
- Granularity 128 bytes: Index 49-64 -> 2049B - 3967 allocation
When a block is freed, the system ensures the block size fits Dynamic Lookaside (512B to 3967B). If the bucket is enabled, the block is placed into its _RTL_LOOKASIDE rather than returned to the heap. The block is ready for reuse if another similar-size block is requested. If the list is full (Depth == MaximumDepth), the block goes back to the regular backend.
To use it, the appropriate bucket is queried based on the requested size. If blocks are available in the ListHead, allocation is instant. If not, it falls back to the regular backend.
I won’t go into more detail as this is not the main focus of the research, but in summary, it’s a kind of “cache”, instead of caching data, it caches memory allocations.
References
- Windows Internals 7th edition
- kernel-pool-exploitation-on-windows-7
- SSTIC2020-Article-pool_overflow_exploitation_since_windows_10_19h1-bayet_fariello
Closing
This overview of the Windows kernel pool and heap internals sets a solid base for future heap exploitation.
Good morning, and in case I don’t see ya: Good afternoon, good evening, and good night!
