kASLR Internals and Evolution
Good morning! Today’s blog won’t be too long, but that doesn’t mean it’s not important.
Perhaps one of the oldest mitigations implemented in all software is ASLR (Address Space Layout Randomization). This mitigation randomizes the address range within a given piece of software, aiming to eliminate static addresses that attackers could exploit to perform certain functionality.
As expected, the Windows kernel also implements this mitigation, kASLR, which has been continuously improved with each new version.
This blog combines a bit of research differentiating the code of Nt functions available to a medium integrity process, which used to help bypass kASLR. We’ll also take a look at the subsequent patch and how it was implemented.
kASLR (Pre 24H2)
Prior to version 24H2, it was possible to call Nt functions from User mode in a very straightforward manner. Perhaps the most commonly used was NtQuerySystemInformation, which is represented as follows:
1
2
3
4
5
6
__kernel_entry NTSTATUS NtQuerySystemInformation(
[in] SYSTEM_INFORMATION_CLASS SystemInformationClass,
[in, out] PVOID SystemInformation,
[in] ULONG SystemInformationLength,
[out, optional] PULONG ReturnLength
);
According to Microsoft:
1
2
3
"[**NtQuerySystemInformation** may be altered or unavailable in future versions of Windows. Applications should use the alternate functions listed in this topic.]
Retrieves the specified system information."
And indeed, that turned out to be the case — but let’s not get ahead of ourselves.
NtQuerySystemInformation literally returned KM addresses or data just like that — all you had to do was pass one of the following flags:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
List of KASLR bypass techniques in Windows 10 kernel.
1. ZwQuerySystemInformation/SystemModuleInformation
2. ZwQuerySystemInformation/SystemModuleInformationEx
3. ZwQuerySystemInformation/SystemProcessInformation
4. ZwQuerySystemInformation/SystemExtendedProcessInformation
5. ZwQuerySystemInformation/SystemSessionProcessInformation
6. ZwQuerySystemInformation/SystemLocksInformation
7. ZwQuerySystemInformation/SystemHandleInformation
8. ZwQuerySystemInformation/SystemExtendedHandleInformation
9. ZwQuerySystemInformation/SystemObjectInformation
10. ZwQuerySystemInformation/SystemBigPoolInformation
11. ZwQuerySystemInformation/SystemSessionBigPoolInformation
12. ZwQueryInformationProcess/ProcessHandleTracing
13. ZwQueryInformationProcess/ProcessWorkingSetWatch
14. ZwQueryInformationProcess/ProcessWorkingSetWatchEx
The flag values are the following:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
//0x4 bytes (sizeof)
enum _SYSTEM_INFORMATION_CLASS
{
SystemBasicInformation = 0,
...
SystemModuleInformation = 11,
...
SystemPagedPoolInformation = 14,
SystemNonPagedPoolInformation = 15,
SystemHandleInformation = 16,
SystemObjectInformation = 17,
SystemPageFileInformation = 18,
...
SystemExtendedProcessInformation = 57,
...
SystemEmulationBasicInformation = 62,
SystemEmulationProcessorInformation = 63,
SystemExtendedHandleInformation = 64,
SystemLostDelayedWriteInformation = 65,
SystemBigPoolInformation = 66,
SystemSessionPoolTagInformation = 67,
SystemSessionMappedViewInformation = 68,
...
SystemModuleInformationEx = 77,
...
MaxSystemInfoClass = 248
};
These are some of the most important flags. You can find all available flags at flags.
To execute this wonderful function, it’s as simple as creating a function pointer, getting the address of NtQuerySystemInformation from ntdll.dll, and casting it for later execution.
Since this is a semi-documented function, some structures might not be available on MSDN, so we’ll have to look for them on GitHub or the internet.
Let’s look at the most basic — and most common — example. On an older version of Windows 10 (Windows 10 1507), we’ll retrieve the base address of ntoskrnl.exe using this function. For this, we need the SystemModuleInformation flag, which is decimal value 11, and the structure PSYSTEM_MODULE_INFORMATION, which we can get thanks to this great GitHub repository.
We’ll verify the address of ntoskrnl.exe using WinDbg:
1: kd> lm m nt
Browse full module list
start end module name
fffff800`b6a7d000 fffff800`b72cf000 nt (pdb symbols) c:\symbols\ntkrnlmp.pdb\C68EE22FDCF6477895C54A862BE165671\ntkrnlmp.pdb
Indeed, in this case the address would be 0xfffff800b6a7d000.
Here’s what the code looks like:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
#include <stdio.h>
#include <windows.h>
//
// MODULE INFOMATION
//
#define MAXIMUM_FILENAME_LENGTH 255
//0x4 bytes (sizeof)
enum _SYSTEM_INFORMATION_CLASS
{
SystemModuleInformation = 11
};
//
// MODULE INFORMATION STRUCTURES
//
typedef struct SYSTEM_MODULE {
ULONG Reserved1;
ULONG Reserved2;
#ifdef _WIN64
ULONG Reserved3;
#endif
PVOID ImageBaseAddress;
ULONG ImageSize;
ULONG Flags;
WORD Id;
WORD Rank;
WORD w018;
WORD NameOffset;
CHAR Name[MAXIMUM_FILENAME_LENGTH];
}SYSTEM_MODULE, * PSYSTEM_MODULE;
typedef struct SYSTEM_MODULE_INFORMATION {
ULONG ModulesCount;
SYSTEM_MODULE Modules[1];
} SYSTEM_MODULE_INFORMATION, * PSYSTEM_MODULE_INFORMATION;
//
// FUNCTION POINTER
//
typedef NTSTATUS(*_NtQuerySystemInformation)(
_SYSTEM_INFORMATION_CLASS SystemInformationClass,
PVOID SystemInformation,
ULONG SystemInformationLength,
PULONG ReturnLength
);
int main() {
// cast the pointer to NtQuerySystemInformation inside ntdll.dll to NtQuerySystemInformation function pointer
_NtQuerySystemInformation NtQuerySystemInformation = (_NtQuerySystemInformation)GetProcAddress(GetModuleHandleW(L"ntdll.dll"), "NtQuerySystemInformation");
if (NtQuerySystemInformation == nullptr) {
printf("\n[ERROR] Error getting the \"NtQuerySystemInformation\" function pointer: %d\n", GetLastError());
return -1;
}
NTSTATUS Status = 1;
ULONG ReturnLength = 0;
NtQuerySystemInformation(SystemModuleInformation, nullptr, 0, &ReturnLength);
if (ReturnLength == 0) {
printf("\n[ERROR] Error getting the length to \"SystemModuleInformation\"\n");
return -1;
}
PSYSTEM_MODULE_INFORMATION SystemModuleInfo = (PSYSTEM_MODULE_INFORMATION)VirtualAlloc(nullptr, ReturnLength, MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
Status = NtQuerySystemInformation(SystemModuleInformation, SystemModuleInfo, ReturnLength, &ReturnLength);
if (Status != 0) {
printf("\n[ERROR] Error calling \"NtQuerySystemInformation\" for module info: 0x%0.16X\n", Status);
return -1;
}
printf("\n[kASLR Lab]:");
printf("\n\t\"SystemModuleInformation\" flag\n\t\t");
printf("[Name] \"%s\"\n\t\t[Address] 0x%p\n\n\t\t", SystemModuleInfo[0].Modules->Name, SystemModuleInfo[0].Modules->ImageBaseAddress);
printf("[Name] \"%s\"\n\t\t[Address] 0x%p\n\n\t\t", SystemModuleInfo[1].Modules->Name, SystemModuleInfo[1].Modules->ImageBaseAddress);
printf("[Name] \"%s\"\n\t\t[Address] 0x%p\n\n\t\t", SystemModuleInfo[2].Modules->Name, SystemModuleInfo[2].Modules->ImageBaseAddress);
// SystemModuleInfo cleanup
VirtualFree(SystemModuleInfo, ReturnLength, MEM_RELEASE);
SystemModuleInfo = nullptr;
ReturnLength = 0;
return 0;
}

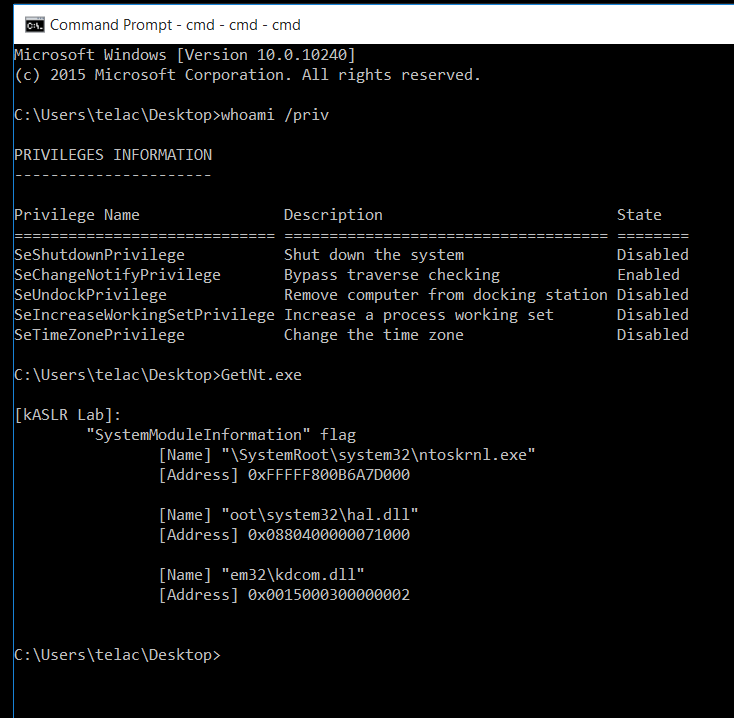

As we can see, we first make a call to get the size of the structure we’re going to allocate. For that, we pass a pointer to ReturnLength, which will store the appropriate size so we can allocate memory on the heap for the SYSTEM_MODULE_INFORMATION structure. This two-call pattern, first for the size and the second call to fill the data structure.
Now let’s look at a variation of the code. We’ll request more Kernel Mode data using the same function. This time, we’ll use two more flags.

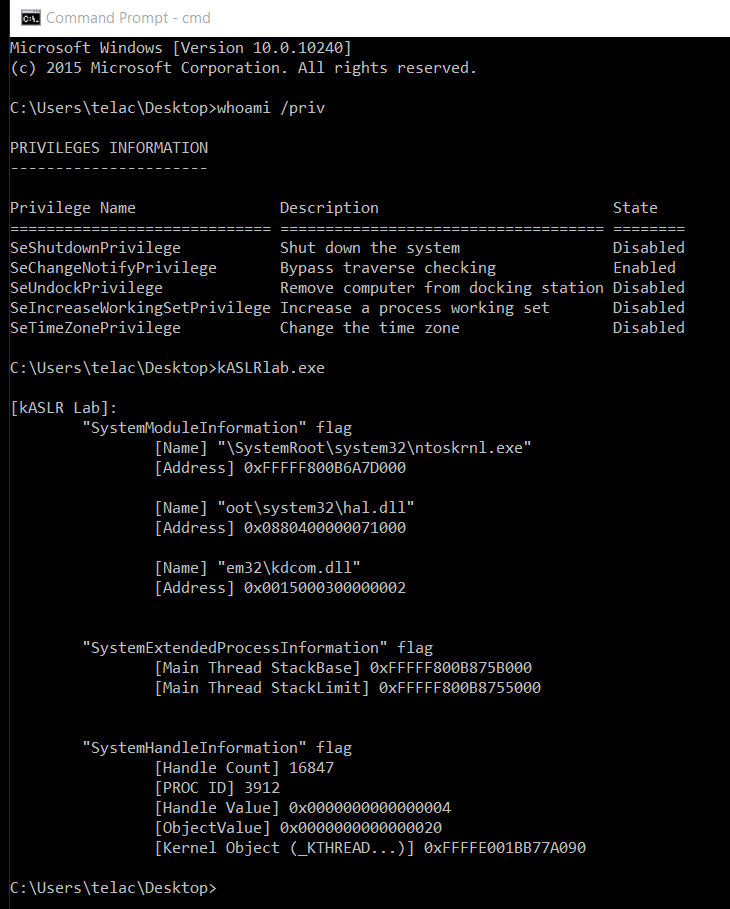

As shown, we request SystemModuleInformation, SystemExtendedProcessInformation, and SystemExtendedHandleInformation.
The code would be:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
#include <stdio.h>
#include <windows.h>
//
// MODULE INFOMATION
//
#define MAXIMUM_FILENAME_LENGTH 255
//0x4 bytes (sizeof)
enum _SYSTEM_INFORMATION_CLASS
{
SystemModuleInformation = 11,
SystemExtendedProcessInformation = 57,
SystemExtendedHandleInformation = 64
};
//
// MODULE INFORMATION STRUCTURES
//
typedef struct SYSTEM_MODULE {
ULONG Reserved1;
ULONG Reserved2;
#ifdef _WIN64
ULONG Reserved3;
#endif
PVOID ImageBaseAddress;
ULONG ImageSize;
ULONG Flags;
WORD Id;
WORD Rank;
WORD w018;
WORD NameOffset;
CHAR Name[MAXIMUM_FILENAME_LENGTH];
}SYSTEM_MODULE, * PSYSTEM_MODULE;
typedef struct SYSTEM_MODULE_INFORMATION {
ULONG ModulesCount;
SYSTEM_MODULE Modules[1];
} SYSTEM_MODULE_INFORMATION, * PSYSTEM_MODULE_INFORMATION;
//
// EXTENDED PROCESS INFOMATION STRUCTURES
//
typedef LONG KPRIORITY;
typedef struct _CLIENT_ID {
DWORD UniqueProcess;
DWORD UniqueThread;
} CLIENT_ID;
typedef struct _UNICODE_STRING {
USHORT Length;
USHORT MaximumLength;
PWSTR Buffer;
} UNICODE_STRING;
//from http://boinc.berkeley.edu/android-boinc/boinc/lib/diagnostics_win.h
typedef struct _VM_COUNTERS {
// the following was inferred by painful reverse engineering
SIZE_T PeakVirtualSize; // not actually
SIZE_T PageFaultCount;
SIZE_T PeakWorkingSetSize;
SIZE_T WorkingSetSize;
SIZE_T QuotaPeakPagedPoolUsage;
SIZE_T QuotaPagedPoolUsage;
SIZE_T QuotaPeakNonPagedPoolUsage;
SIZE_T QuotaNonPagedPoolUsage;
SIZE_T PagefileUsage;
SIZE_T PeakPagefileUsage;
SIZE_T VirtualSize; // not actually
} VM_COUNTERS;
typedef enum _KWAIT_REASON
{
Executive = 0,
FreePage = 1,
PageIn = 2,
PoolAllocation = 3,
DelayExecution = 4,
Suspended = 5,
UserRequest = 6,
WrExecutive = 7,
WrFreePage = 8,
WrPageIn = 9,
WrPoolAllocation = 10,
WrDelayExecution = 11,
WrSuspended = 12,
WrUserRequest = 13,
WrEventPair = 14,
WrQueue = 15,
WrLpcReceive = 16,
WrLpcReply = 17,
WrVirtualMemory = 18,
WrPageOut = 19,
WrRendezvous = 20,
Spare2 = 21,
Spare3 = 22,
Spare4 = 23,
Spare5 = 24,
WrCalloutStack = 25,
WrKernel = 26,
WrResource = 27,
WrPushLock = 28,
WrMutex = 29,
WrQuantumEnd = 30,
WrDispatchInt = 31,
WrPreempted = 32,
WrYieldExecution = 33,
WrFastMutex = 34,
WrGuardedMutex = 35,
WrRundown = 36,
MaximumWaitReason = 37
} KWAIT_REASON;
typedef struct _SYSTEM_THREAD_INFORMATION {
LARGE_INTEGER KernelTime;
LARGE_INTEGER UserTime;
LARGE_INTEGER CreateTime;
ULONG WaitTime;
PVOID StartAddress;
CLIENT_ID ClientId;
KPRIORITY Priority;
LONG BasePriority;
ULONG ContextSwitchCount;
ULONG ThreadState;
KWAIT_REASON WaitReason;
#ifdef _WIN64
ULONG Reserved[4];
#endif
}SYSTEM_THREAD_INFORMATION, * PSYSTEM_THREAD_INFORMATION;
typedef struct _SYSTEM_EXTENDED_THREAD_INFORMATION
{
SYSTEM_THREAD_INFORMATION ThreadInfo;
PVOID StackBase;
PVOID StackLimit;
PVOID Win32StartAddress;
PVOID TebAddress; /* This is only filled in on Vista and above */
ULONG Reserved1;
ULONG Reserved2;
ULONG Reserved3;
} SYSTEM_EXTENDED_THREAD_INFORMATION, * PSYSTEM_EXTENDED_THREAD_INFORMATION;
typedef struct _SYSTEM_EXTENDED_PROCESS_INFORMATION
{
ULONG NextEntryOffset;
ULONG NumberOfThreads;
LARGE_INTEGER SpareLi1;
LARGE_INTEGER SpareLi2;
LARGE_INTEGER SpareLi3;
LARGE_INTEGER CreateTime;
LARGE_INTEGER UserTime;
LARGE_INTEGER KernelTime;
UNICODE_STRING ImageName;
KPRIORITY BasePriority;
ULONG ProcessId;
ULONG InheritedFromUniqueProcessId;
ULONG HandleCount;
ULONG SessionId;
PVOID PageDirectoryBase;
VM_COUNTERS VirtualMemoryCounters;
SIZE_T PrivatePageCount;
IO_COUNTERS IoCounters;
SYSTEM_EXTENDED_THREAD_INFORMATION Threads[1];
} SYSTEM_EXTENDED_PROCESS_INFORMATION, * PSYSTEM_EXTENDED_PROCESS_INFORMATION;
//
// EXTENDED HANDLE INFOMATION STRUCTURES
//
typedef struct _SYSTEM_HANDLE
{
PVOID Object;
HANDLE UniqueProcessId;
HANDLE HandleValue;
ULONG GrantedAccess;
USHORT CreatorBackTraceIndex;
USHORT ObjectTypeIndex;
ULONG HandleAttributes;
ULONG Reserved;
} SYSTEM_HANDLE, * PSYSTEM_HANDLE;
typedef struct _SYSTEM_HANDLE_INFORMATION_EX
{
ULONG_PTR HandleCount;
ULONG_PTR Reserved;
SYSTEM_HANDLE Handles[1];
} SYSTEM_HANDLE_INFORMATION_EX, * PSYSTEM_HANDLE_INFORMATION_EX;
//
// FUNCTION POINTER STRUCTURES
//
typedef NTSTATUS (*_NtQuerySystemInformation)(
_SYSTEM_INFORMATION_CLASS SystemInformationClass,
PVOID SystemInformation,
ULONG SystemInformationLength,
PULONG ReturnLength
);
int main() {
_NtQuerySystemInformation NtQuerySystemInformation = (_NtQuerySystemInformation)GetProcAddress(GetModuleHandleW(L"ntdll.dll"), "NtQuerySystemInformation");
if (NtQuerySystemInformation == nullptr) {
printf("\n[ERROR] Error getting the \"NtQuerySystemInformation\" function pointer: %d\n", GetLastError());
return -1;
}
NTSTATUS Status = 1;
ULONG ReturnLength = 0;
NtQuerySystemInformation(SystemModuleInformation, nullptr, 0, &ReturnLength);
if (ReturnLength == 0) {
printf("\n[ERROR] Error getting the length to \"SystemModuleInformation\"\n");
return -1;
}
PSYSTEM_MODULE_INFORMATION SystemModuleInfo = (PSYSTEM_MODULE_INFORMATION)VirtualAlloc(nullptr, ReturnLength, MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
Status = NtQuerySystemInformation(SystemModuleInformation, SystemModuleInfo, ReturnLength, &ReturnLength);
if (Status != 0) {
printf("\n[ERROR] Error calling \"NtQuerySystemInformation\" for module info: 0x%0.16X\n", Status);
return -1;
}
printf("\n[kASLR Lab]:");
printf("\n\t\"SystemModuleInformation\" flag\n\t\t");
printf("[Name] \"%s\"\n\t\t[Address] 0x%p\n\n\t\t", SystemModuleInfo[0].Modules->Name, SystemModuleInfo[0].Modules->ImageBaseAddress);
printf("[Name] \"%s\"\n\t\t[Address] 0x%p\n\n\t\t", SystemModuleInfo[1].Modules->Name, SystemModuleInfo[1].Modules->ImageBaseAddress);
printf("[Name] \"%s\"\n\t\t[Address] 0x%p\n\n\t\t", SystemModuleInfo[2].Modules->Name, SystemModuleInfo[2].Modules->ImageBaseAddress);
// SystemModuleInfo cleanup
VirtualFree(SystemModuleInfo, ReturnLength, MEM_RELEASE);
SystemModuleInfo = nullptr;
ReturnLength = 0;
NtQuerySystemInformation(SystemExtendedProcessInformation, nullptr, 0, &ReturnLength);
if (ReturnLength == 0) {
printf("\n[ERROR] Error getting the length to \"SystemExtendedProcessInformation\"\n");
return -1;
}
PSYSTEM_EXTENDED_PROCESS_INFORMATION SysProcessInfoEx = (PSYSTEM_EXTENDED_PROCESS_INFORMATION)VirtualAlloc(nullptr, ReturnLength, MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
Status = NtQuerySystemInformation(SystemExtendedProcessInformation, SysProcessInfoEx, ReturnLength, &ReturnLength);
if (Status != 0) {
printf("\n[ERROR] Error calling \"NtQuerySystemInformation\" for process info Ex: 0x%0.16X\n", Status);
return -1;
}
printf("\n\t\"SystemExtendedProcessInformation\" flag\n\t\t");
printf("[Main Thread StackBase] 0x%p\n\t\t", SysProcessInfoEx->Threads[0].StackBase);
printf("[Main Thread StackLimit] 0x%p\n\n\t\t", SysProcessInfoEx->Threads[0].StackLimit);
// SysProcessInfoEx cleanup
VirtualFree(SysProcessInfoEx, ReturnLength, MEM_RELEASE);
SysProcessInfoEx = nullptr;
ReturnLength = 0;
PSYSTEM_HANDLE_INFORMATION_EX SysHandleInfoEx = nullptr;
Status = 1;
ReturnLength = 1;
while (Status != 0) {
if (SysHandleInfoEx != nullptr) {
VirtualFree(SysHandleInfoEx, ReturnLength, MEM_RELEASE);
SysHandleInfoEx = nullptr;
}
ReturnLength *= 2;
SysHandleInfoEx = (PSYSTEM_HANDLE_INFORMATION_EX)VirtualAlloc(nullptr, ReturnLength, MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
ULONG length = 0;
Status = NtQuerySystemInformation(SystemExtendedHandleInformation, SysHandleInfoEx, ReturnLength, &length);
}
printf("\n\t\"SystemHandleInformation\" flag\n\t\t");
printf("[Handle Count] %d\n\t\t", SysHandleInfoEx->HandleCount);
for (unsigned int i = 0; i < SysHandleInfoEx->HandleCount; i++) {
if ((DWORD)SysHandleInfoEx->Handles[i].UniqueProcessId == GetProcessId(((HANDLE)-1))) {
printf("[PROC ID] %d\n\t\t", SysHandleInfoEx->Handles[i].UniqueProcessId);
printf("[Handle Value] 0x%p\n\t\t", SysHandleInfoEx->Handles[i].HandleValue);
printf("[ObjectValue] 0x%p\n\t\t", SysHandleInfoEx->Handles[i].ObjectTypeIndex);
printf("[Kernel Object (_KTHREAD...)] 0x%p\n\t\t", SysHandleInfoEx->Handles[i].Object);
break;
}
}
// SysHandleInfoEx cleanup
VirtualFree(SysHandleInfoEx, ReturnLength, MEM_RELEASE);
SysHandleInfoEx = nullptr;
ReturnLength = 0;
return 0;
}
The main thing to highlight in this code is how we obtain ReturnLength when requesting SystemExtendedHandleInformation. That’s because the previously mentioned method fails here, so we keep allocating more and more space, depending on whether the NtQuerySystemInformation call returns STATUS_SUCCESS. If not, the loop repeats.
Ultimately, these two examples demonstrate that it’s indeed possible to obtain very valuable information from User Mode, useful for later exploitation.
Now let’s see how this function actually works.
NtQuerySystemInformation Internals
Here’s the pseudo-code of the function in IDA:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
NTSTATUS __stdcall NtQuerySystemInformation(
SYSTEM_INFORMATION_CLASS SystemInformationClass,
PVOID SystemInformation,
ULONG SystemInformationLength,
PULONG ReturnLength)
{
__int16 *p_Group; // rdx
__int64 v7; // r8
NTSTATUS result; // eax
__int16 Group; // [rsp+40h] [rbp+8h] BYREF
if ( SystemInformationClass >= SystemWow64SharedInformationObsolete
&& SystemInformationClass < SystemProcessorIdleCycleTimeInformation
|| SystemInformationClass < SystemProcessorPerformanceInformation )
{
LABEL_3:
p_Group = 0;
v7 = 0;
return ExpQuerySystemInformation(
SystemInformationClass,
p_Group,
v7,
SystemInformation,
SystemInformationLength,
ReturnLength);
}
else
{
switch ( SystemInformationClass )
{
case SystemProcessorPerformanceInformation:
case SystemInterruptInformation:
case SystemPowerInformationNative:
case SystemProcessorPowerInformation:
case SystemProcessorIdleCycleTimeInformation:
case SystemPrefetchPathInformation|SystemPathInformation:
case SystemPrefetchPathInformation|SystemLocksInformation:
case SystemStackTraceInformation|0x80:
v7 = 2;
Group = KeGetCurrentPrcb()->Group;
p_Group = &Group;
return ExpQuerySystemInformation(
SystemInformationClass,
p_Group,
v7,
SystemInformation,
SystemInformationLength,
ReturnLength);
case SystemLogicalProcessorInformation:
v7 = 2;
Group = 0;
p_Group = &Group;
return ExpQuerySystemInformation(
SystemInformationClass,
p_Group,
v7,
SystemInformation,
SystemInformationLength,
ReturnLength);
case MaxSystemInfoClass|SystemFlagsInformation:
case SystemVerifierFaultsInformation|SystemDpcBehaviorInformation:
result = -1073741821;
break;
default:
goto LABEL_3;
}
}
return result;
}
As we can see, it’s just a wrapper for ExpQuerySystemInformation, which is a massive function…

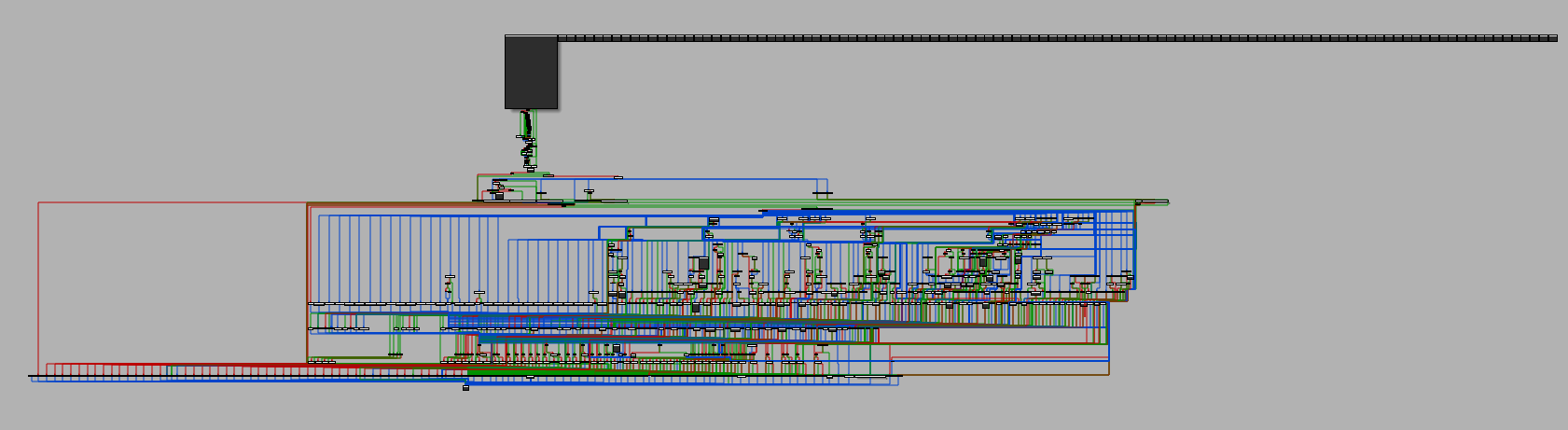

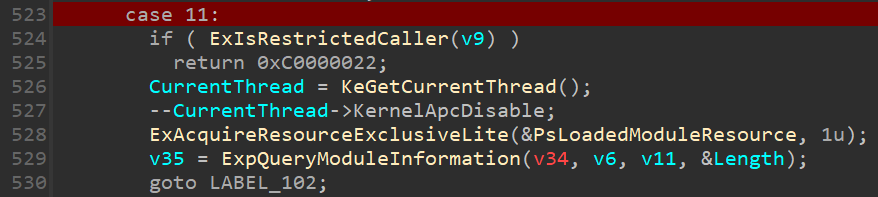

Due to the size of the function, let’s focus on example 11, which corresponds to SystemModuleInformation.
As shown, there’s a call to ExIsRestrictedCaller(), which looks like this:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
_BOOL8 __fastcall ExIsRestrictedCaller(char a1)
{
BOOLEAN v1; // bl
_BOOL8 result; // rax
struct _SECURITY_SUBJECT_CONTEXT SubjectContext; // [rsp+50h] [rbp-28h] BYREF
NTSTATUS AccessStatus; // [rsp+80h] [rbp+8h] BYREF
ACCESS_MASK GrantedAccess; // [rsp+88h] [rbp+10h] BYREF
result = 0;
if ( a1 )
{
SeCaptureSubjectContextEx(KeGetCurrentThread(), KeGetCurrentThread()->ApcState.Process, &SubjectContext);
v1 = SeAccessCheck(
SeMediumDaclSd,
&SubjectContext,
0,
0x20000u,
0,
0,
(PGENERIC_MAPPING)&ExpRestrictedGenericMapping,
1,
&GrantedAccess,
&AccessStatus);
SeReleaseSubjectContext(&SubjectContext);
if ( v1 != 1 || AccessStatus < 0 )
return 1;
}
return result;
}
This function checks and returns info to ExpQuerySystemInformation, but in 24H2 there was a major change.
kASLR (Post 24H2)
Now let’s take a look at NtQuerySystemInformation after 24H2.

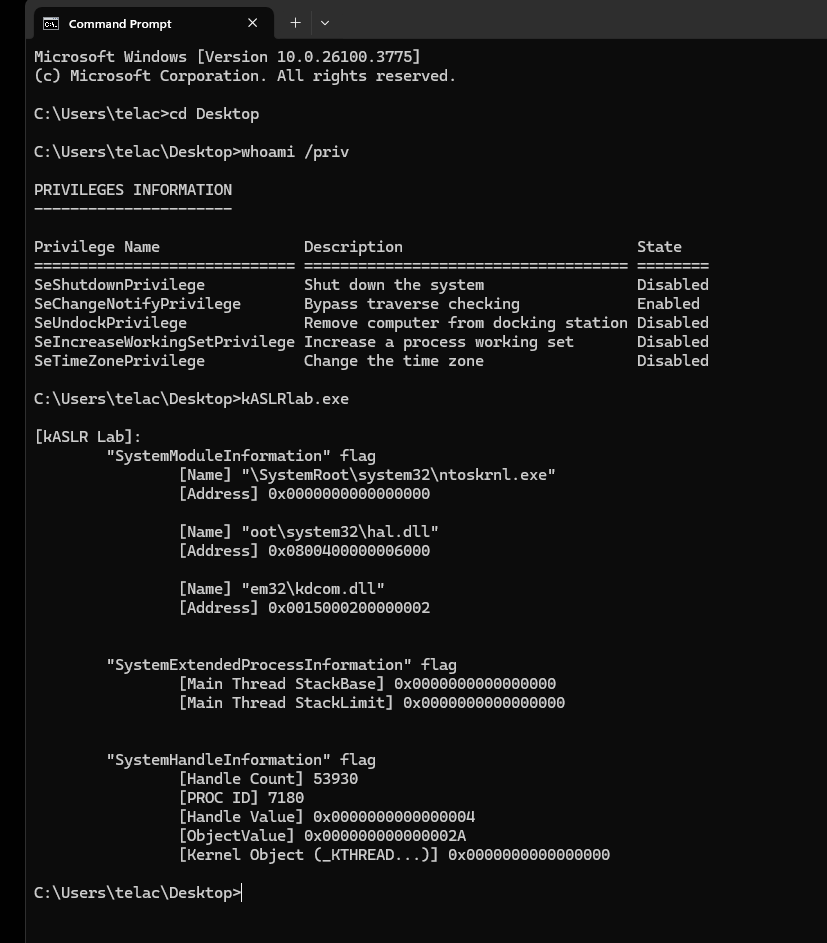

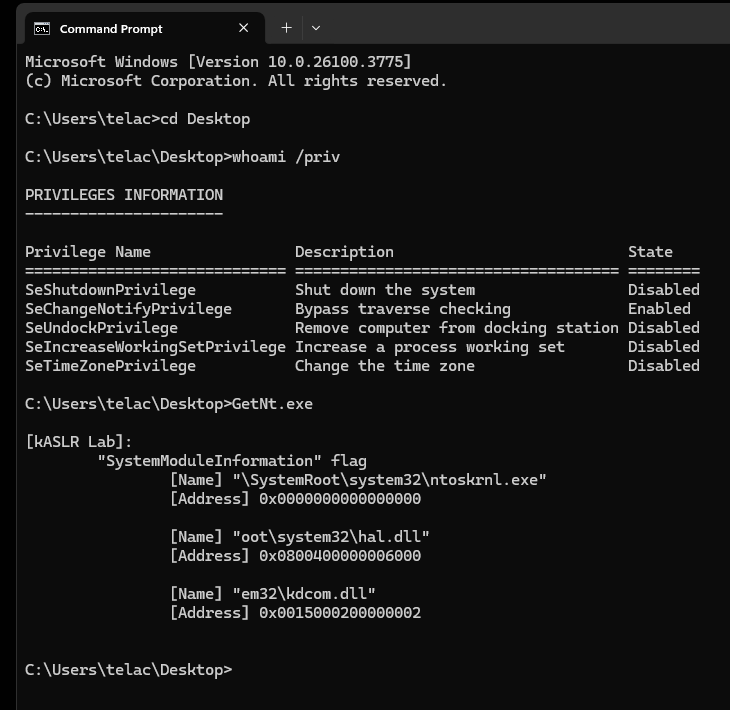

To test this, we’ll run both programs again. But spoiler alert: neither of them is going to work.
And sure enough, no addresses are returned. Why is that?
NtQuerySystemInformation Internals
To start, we have NtQuerySystemInformation() just like in version 1507:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
NTSTATUS __fastcall NtQuerySystemInformation(int a1, _QWORD *a2, ULONG a3, ULONG *a4)
{
__int16 *p_PrimaryGroupThread; // rdx
ULONG *v6; // r11
int v8; // r10d
int v9; // r8d
__int16 PrimaryGroupThread; // [rsp+40h] [rbp+8h] BYREF
p_PrimaryGroupThread = 0;
v6 = a4;
PrimaryGroupThread = 0;
v8 = a1;
switch ( a1 )
{
case 8:
case 23:
case 42:
case 61:
case 83:
case 100:
case 108:
case 141:
PrimaryGroupThread = KeQueryPrimaryGroupThread(KeGetCurrentThread());
goto LABEL_5;
case 73:
LABEL_5:
p_PrimaryGroupThread = &PrimaryGroupThread;
v9 = 2;
return ExpQuerySystemInformation(v8, (__int64)p_PrimaryGroupThread, v9, a2, a3, v6);
case 107:
case 121:
case 180:
case 210:
case 211:
case 222:
case 231:
case 238:
case 239:
case 240:
return 0xC0000003;
default:
v9 = 0;
return ExpQuerySystemInformation(v8, (__int64)p_PrimaryGroupThread, v9, a2, a3, v6);
}
}

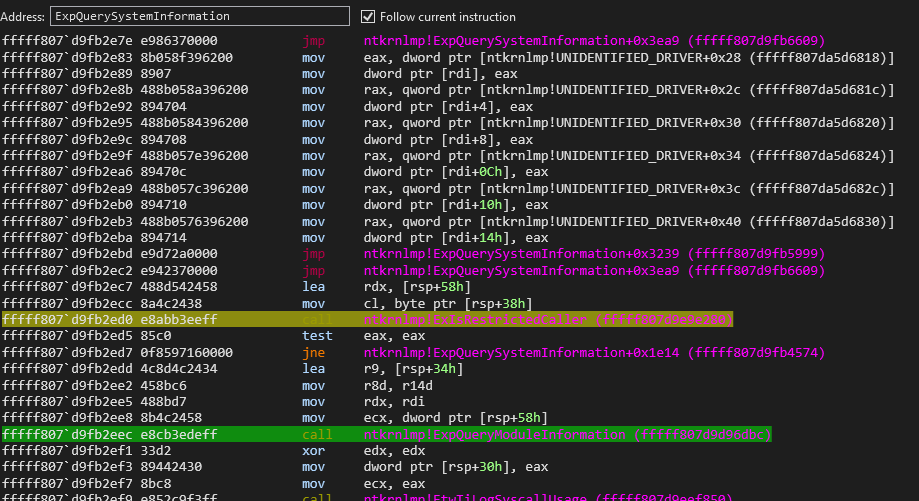

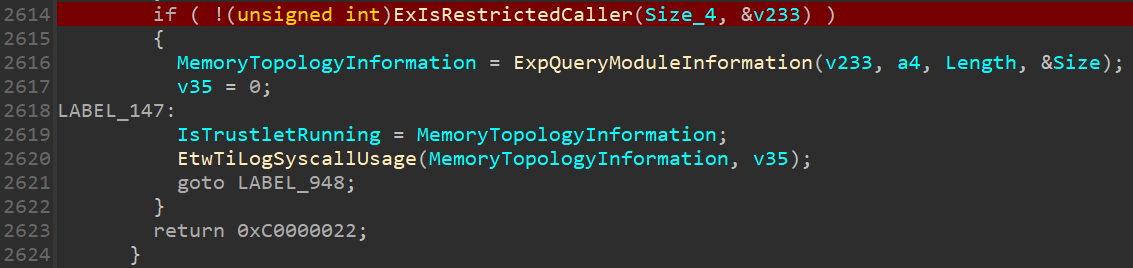

So far, nothing new, the same call to ExpQuerySystemInformation. But if we dig into that function:
And then check what’s inside…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
__int64 __fastcall ExIsRestrictedCaller(KPROCESSOR_MODE a1, _DWORD *a2)
{
unsigned int v2; // edi
BOOLEAN v5; // bl
struct _SECURITY_SUBJECT_CONTEXT SubjectContext; // [rsp+50h] [rbp-28h] BYREF
NTSTATUS AccessStatus; // [rsp+80h] [rbp+8h] BYREF
ACCESS_MASK GrantedAccess; // [rsp+88h] [rbp+10h] BYREF
v2 = 0;
AccessStatus = 0;
GrantedAccess = 0;
memset(&SubjectContext, 0, sizeof(SubjectContext));
if ( a2 )
*a2 = 0;
if ( !a1 )
return 0;
if ( a2 && (unsigned int)Feature_RestrictKernelAddressLeaks__private_IsEnabledDeviceUsageNoInline() )
*a2 = SeSinglePrivilegeCheck(SeDebugPrivilege, a1) == 0;
SeCaptureSubjectContext(&SubjectContext);
v5 = SeAccessCheck(
SeMediumDaclSd,
&SubjectContext,
0,
0x20000u,
0,
0,
(PGENERIC_MAPPING)&ExpRestrictedGenericMapping,
1,
&GrantedAccess,
&AccessStatus);
SeReleaseSubjectContext(&SubjectContext);
if ( !v5 )
return 1;
LOBYTE(v2) = AccessStatus < 0;
return v2;
}
We see that a2 is checked using SeSinglePrivilegeCheck to verify the SeDebugPrivilege. We can also confirm this by setting a breakpoint at nt!ExpQuerySystemInformation+0x770, which is the memory address where we call ExIsRestrictedCaller, just before ExpQueryModuleInformation is executed:
0: kd> bl
0 e Disable Clear fffff807`d9fb2ed0 0001 (0001) nt!ExpQuerySystemInformation+0x770
Basically, it performs checks, and if SeDebugPrivilege is enabled, NtQuerySystemInformation() runs without restrictions. Otherwise, the execution is limited, as shown in this line:
1
2
3
4
...
if ( a2 && (unsigned int)Feature_RestrictKernelAddressLeaks__private_IsEnabledDeviceUsageNoInline() )
*a2 = SeSinglePrivilegeCheck(SeDebugPrivilege, a1) == 0;
...
Ultimately, the option of calling this API to resolve Kernel Mode addresses is no longer viable, unless the goal is an Admin-to-Kernel escalation, in which case it still applies. However, since we can no longer rely on this advantage, the question remains: how can we bypass the increasingly stubborn kASLR?
That question will be addressed in future editions of this blog. Thank you for reading.
Closing
As previously mentioned, this blog post is relatively brief. It presents a concise piece of research on how recent changes have impacted the once-common use of NtQuerySystemInformation() for retrieving privileged Kernel Mode addresses.
Good morning, and in case I don’t see ya: Good afternoon, good evening, and good night!
